Battery cable for BMW 8 Series E31 840i (1996)

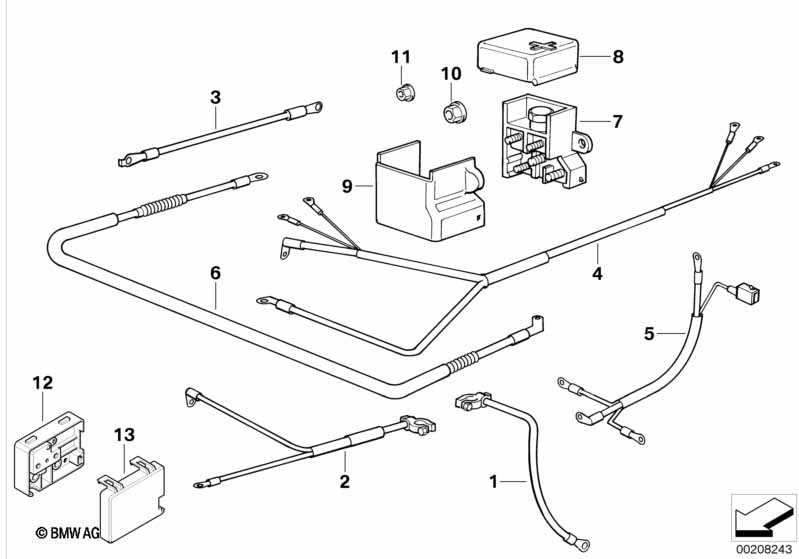

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | 1 | 12421737741 | $28.24 | Shop at ECS Tuning | |||||
| 02 | Cable battery-base B+ | 1 | 09/1994 | 12421742348 | $208.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 04 | Cable, altern, start motor supp point B+ | 1 | 12/1993 | 12421742602 | $300.75 | Shop at ECS Tuning | ||||
| 07 | Base B+ | 1 | 12521745260 | $24.22 | Shop at ECS Tuning | |||||
| 08 | Cover base B+ | 1 | 12521736072 | $3.30 | Shop at ECS Tuning | |||||
| 09 | Covering base B+ | 1 | 12521736073 | $6.87 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8 | 6 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 11 | Flange nut | M5 | 1 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 11 | Nut | M6 | 3 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Fuse housing | 1 | 61138365920 | $42.62 | Shop at ECS Tuning | |||||
| 13 | Cover, fuse box | F. 2- FACH | 1 | 61318367767 | $4.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i Battery cable?
- This technical diagram illustrates the Battery cable within the Engine electrical system group for the 8 Series E31 840i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Battery cable negative (Part #12421737741).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 8 Series E31 840i produced during 1996. These technical specifications ensure that parts like the Battery cable negative (12421737741) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Battery cable negative by locating its position on the schematic, which then links to the official BMW part number 12421737741 for the Engine electrical system section.
