Engine wiring harness for BMW 5 Series E34 540i (1995)

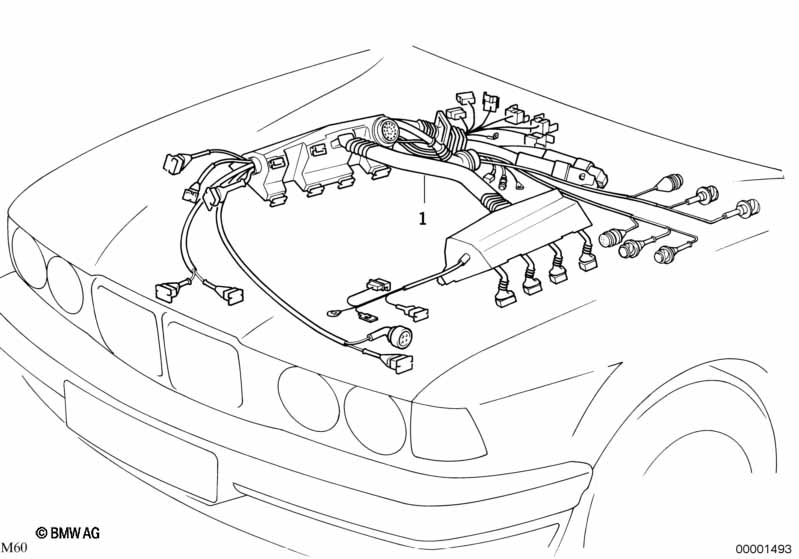

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harness DME+ASC | 1 | 06/1994 | 12511742030 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Emission control hc1 |
=Yes |
|||||||||
| 01 | Engine wiring harness DME+AGS+ASC+hc1 | 1 | 12511742607 | ENDED | Shop at ECS Tuning | |||||
