Relay motor/control unit-box for BMW 7 Series E32 740i (1994)

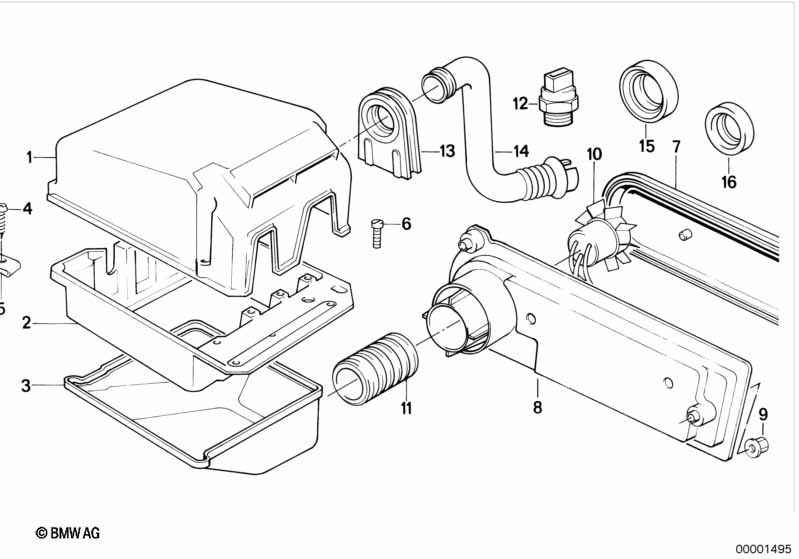

This Relay motor/control unit-box technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 12901747122 | $43.92 | ENDED | Shop at ECS Tuning | ||||
| 02 | Center part | 1 | 12901747121 | $57.87 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bottom part | 1 | 12901716922 | $27.44 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST4,8X16-Z1 | 4 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M6X16 | 4 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Intake manifold upper part | 1 | 12901713435 | $17.05 | Shop at ECS Tuning | |||||
| 08 | Intake manifold lower part | 1 | 12901713433 | $16.08 | Shop at ECS Tuning | |||||
| 09 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Blower unit | 1 | 12901720343 | $145.46 | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 1 | 12901718979 | $2.56 | Shop at ECS Tuning | |||||
| 12 | Temperature switch | 44 CEL | 1 | 12631717443 | $31.13 | Shop at ECS Tuning | ||||
| 13 | Grommet | 1 | 12901717087 | $7.82 | Shop at ECS Tuning | |||||
| 14 | Vent hose | 1 | 12901747478 | $9.12 | ENDED | Shop at ECS Tuning | ||||
| 15 | Grommet | E-BOX | 1 | 12901717046 | $2.82 | ENDED | Shop at ECS Tuning | |||
| 16 | Grommet | 1 | 12901717047 | $2.82 | ENDED | Shop at ECS Tuning |
