Ignition coil/spark plug for BMW 3 Series E46 323i (1998)

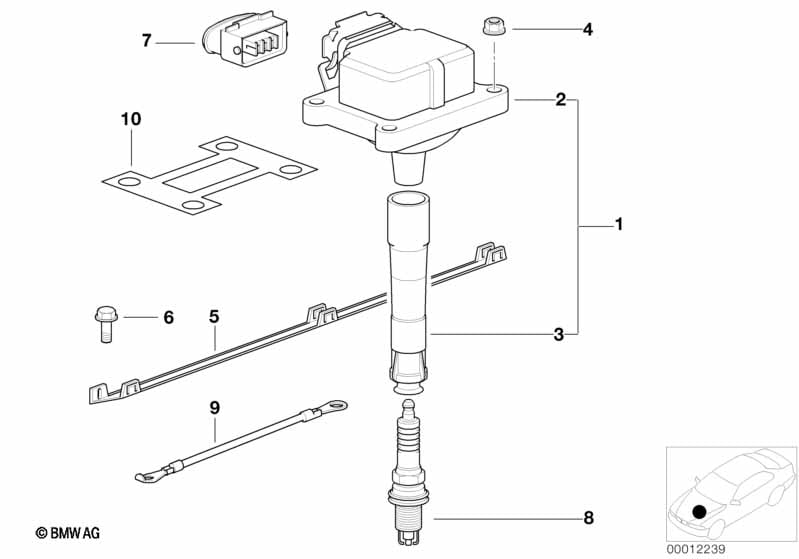

This Ignition coil/spark plug technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Ignition coil | BREMI | 6 | 12137599219 | Shop at ECS Tuning | |||||
| 02 | Ignition coil | BOSCH | 6 | 12131703228 | $85.84 | Shop at ECS Tuning | ||||
| 03 | Spark plug socket | BREMI | 6 | 12131730412 | Shop at ECS Tuning | |||||
| 03 | Spark plug socket | BOSCH | 6 | 12131740477 | $13.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X25-ZNNIV SI | 12 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Plug housing | 3 POL. | 6 | 12521724478 | $8.03 | Shop at ECS Tuning | ||||
| 08 | Spark plug, High Power | 6 | 12120037607 | Shop at ECS Tuning | ||||||
| 08 | Spark plug, High Power | NGK BKR6EQUP | 6 | 12129071003 | $21.32 | ENDED | Shop at ECS Tuning | |||
| 08 | Spark plug, High Power | 6 | 12120037607 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Ignition coil/spark plug?
- This technical diagram illustrates the Ignition coil/spark plug within the Engine electrical system group for the 3 Series E46 323i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil (Part #12137599219).
- Which models use the hardware listed in this Ignition coil/spark plug?
- The hardware and components featured in the Ignition coil/spark plug are specific to the 3 Series E46 323i produced during 1998. These technical specifications ensure that parts like the Ignition coil (12137599219) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ignition coil/spark plug assembly?
- Each item in the Ignition coil/spark plug corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Ignition coil by locating its position on the schematic, which then links to the official BMW part number 12137599219 for the Engine electrical system section.
