Alternator, individual parts 80A for BMW 5 Series E34 520i (1990)

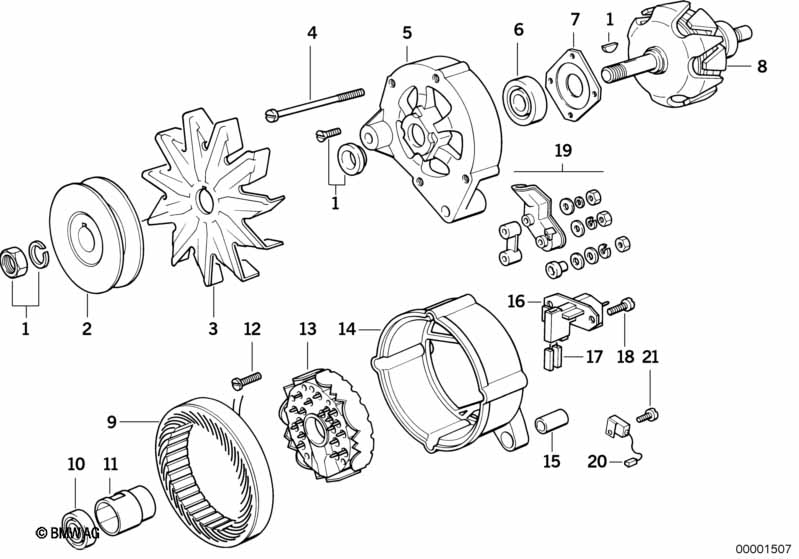

This Alternator, individual parts 80A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 469 877 BMW Nr. 12 31 1 722 207 / 532 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 80A | X | 12311722207 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. generator | 80A | X | 12311722532 | ENDED | Shop at ECS Tuning | ||||
| 01 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pulley | D=66MM | 1 | 12311288238 | $31.13 | Shop at ECS Tuning | ||||
| 03 | Fan wheel | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | 4 | 12311358012 | ENDED | Shop at ECS Tuning | |||||
| 05 | Housing assy front | 1 | 12311735299 | $72.55 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rotor | 1 | 12311288423 | $382.79 | ENDED | Shop at ECS Tuning | ||||
| 09 | Stator assy | 1 | 12311727758 | $309.13 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 11 | Ring | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 12 | Screw | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 13 | Diode assy | 1 | 12311735303 | ENDED | Shop at ECS Tuning | |||||
| 14 | Housing assy rear | 1 | 12311735302 | $93.47 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bush | 1 | 12311727761 | $11.30 | Shop at ECS Tuning | |||||
| 16 | Voltage regulator | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 17 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 19 | Parts set | 1 | 12311735526 | ENDED | Shop at ECS Tuning | |||||
| 20 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 21 | Fillister-head screw | AM5X10 | 1 | 07119919412 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
