Alternator, individual parts 105A for BMW 3 Series E36 318i (1994)

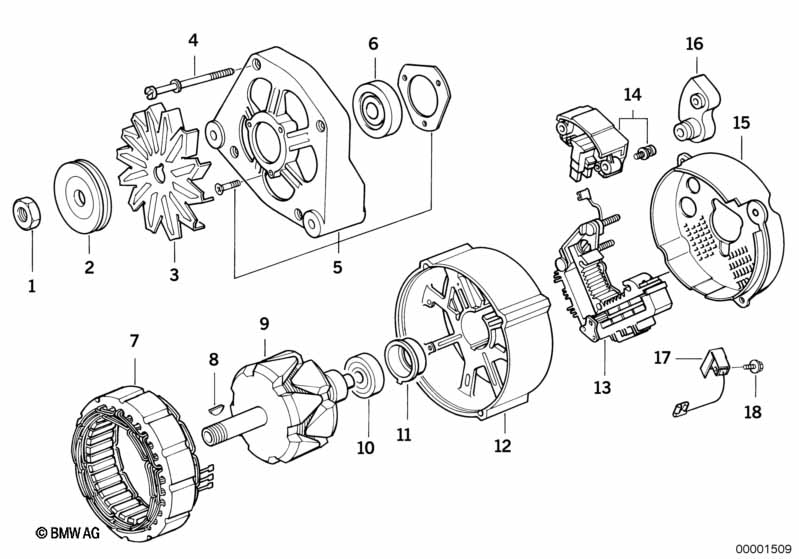

This Alternator, individual parts 105A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 521 682 BMW Nr. 12 31 1 734 322 / 558 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 105A | X | 12311734322 | $560.54 | ENDED | Shop at ECS Tuning | |||
| -- | RP REMAN alternator | 105A | X | 12311734558 | $519.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Hex nut | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 02 | Pulley | 1 | 12311739200 | $21.02 | Shop at ECS Tuning | |||||
| 03 | Fan wheel | 1 | 12311727950 | $25.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | 4 | 12311739201 | $8.95 | Shop at ECS Tuning | |||||
| 05 | Housing assy front | 1 | 12311739194 | $44.64 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Stator assy | 1 | 12311739196 | $128.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Rotor | 1 | 12311739195 | ENDED | Shop at ECS Tuning | |||||
| 10 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | 1 | 12311739205 | $6.79 | Shop at ECS Tuning | |||||
| 12 | Housing assy rear | 1 | 12311739197 | $116.06 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rectifier | 1 | 12311739198 | $122.28 | ENDED | Shop at ECS Tuning | ||||
| 14 | Voltage regulator | VALEO | 1 | 12311739193 | $124.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Ventilation cap | 1 | 12311739204 | $7.10 | ENDED | Shop at ECS Tuning | ||||
| 16 | Insulating cover | VALEO | 1 | 12311734323 | $9.45 | Shop at ECS Tuning | ||||
| 17 | Suppression capacitor alternator | VALEO | 1 | 12311727948 | $18.51 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X10-Z1 | 1 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
