Alternator, individual parts 115A for BMW 5 Series E34 535i (1993)

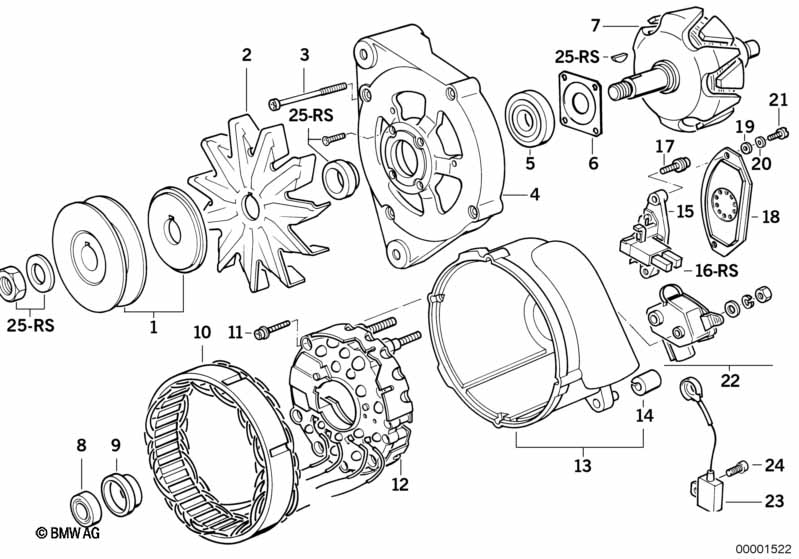

This Alternator, individual parts 115A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 468 096 BMW Nr. 12 31 1 735 703 / 704 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 115A | X | 12311735703 | $901.17 | ENDED | Shop at ECS Tuning | |||
| -- | Exch. generator | 115A | X | 12311735704 | $547.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Pulley | D=69MM | 1 | 12311730713 | $42.83 | Shop at ECS Tuning | ||||
| 02 | Fan wheel | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | 4 | 12311747481 | $2.18 | Shop at ECS Tuning | |||||
| 04 | Housing assy front | 1 | 12311722977 | $58.03 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 06 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rotor | 1 | 12311722978 | $292.39 | ENDED | Shop at ECS Tuning | ||||
| 08 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 09 | Ring | 1 | 12311715174 | $3.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Stator assy | 1 | 12311722976 | $217.62 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw | 5 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 12 | Diode assy | 1 | 12311722962 | $154.57 | Shop at ECS Tuning | |||||
| 13 | Housing assy rear | 1 | 12311735894 | $92.63 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bush | 1 | 12311727761 | $11.30 | Shop at ECS Tuning | |||||
| 15 | Voltage regulator | BOSCH | 1 | 12311735742 | $124.68 | Shop at ECS Tuning | ||||
| 16 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 17 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 18 | Protection cap | 1 | 12311722972 | $2.90 | Shop at ECS Tuning | |||||
| 19 | Washer | 2 | 12311722974 | $0.30 | ENDED | Shop at ECS Tuning | ||||
| 20 | Spring washer | 2 | 12311722975 | $0.40 | ENDED | Shop at ECS Tuning | ||||
| 21 | Fillister-head screw | 2 | 12311722973 | $0.72 | Shop at ECS Tuning | |||||
| 22 | Set mounting parts | B+/D+ | 1 | 12311722985 | $19.10 | Shop at ECS Tuning | ||||
| 23 | Condenser | 1 | 12311722989 | $29.30 | Shop at ECS Tuning | |||||
| 24 | Fillister-head screw | 1 | 12311722966 | $0.70 | Shop at ECS Tuning | |||||
| 25 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
