Alternator, individual parts 80A for BMW 3 Series E36 320i (1996)

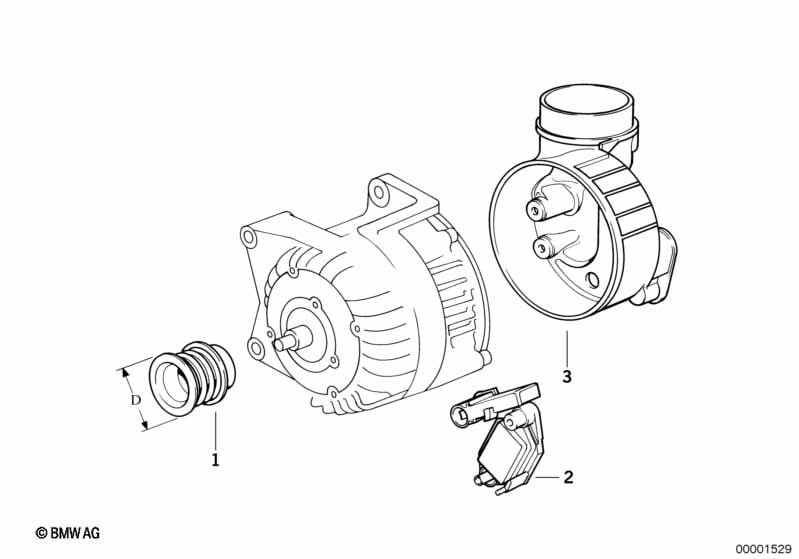

This Alternator, individual parts 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 541 494 BMW Nr. 12 31 1 735 743 / 789 |
|||||||||
| 01 | Pulley alternator | DB=55MM | 1 | 12311713945 | $32.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | VALEO | 1 | 12321739435 | $124.68 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | 1 | 12311735745 | $24.78 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
