Alternator parts 140a for BMW 5 Series E34 520i (1993)

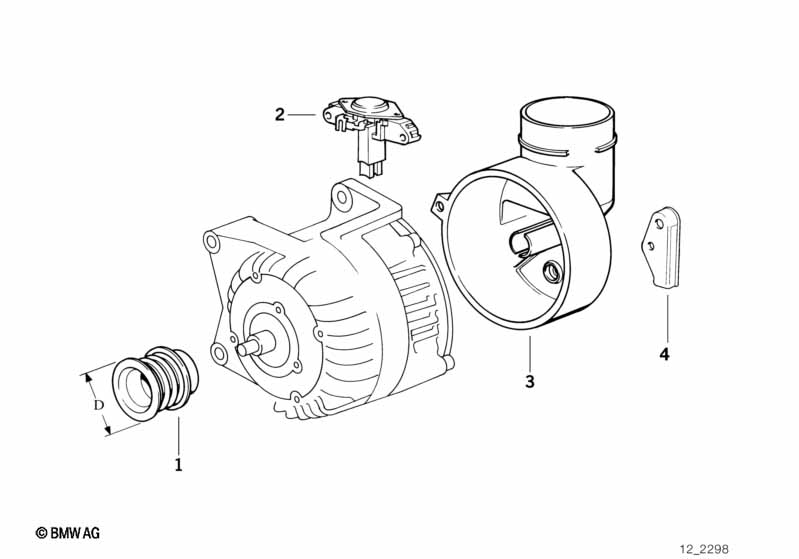

This Alternator parts 140a technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 465 031 |
|||||||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 01/1992 | 12311738351 | $592.11 | ENDED | Shop at ECS Tuning | ||
| -- | Exch. compact alternator | 140A | X | 01/1992 | 12311738352 | $392.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Pulley alternator | D=55MM | 1 | 01/1992 | 12311432988 | $32.10 | Shop at ECS Tuning | |||
| 02 | Voltage regulator | BOSCH | 1 | 01/1992 | 12311747920 | $157.93 | ENDED | Shop at ECS Tuning | ||
| 03 | Intake manifold | 1 | 01/1992 | 12311738266 | $21.02 | Shop at ECS Tuning | ||||
| 04 | Insulating cover | 1 | 01/1992 | 12311738358 | $15.58 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Alternator parts 140a?
- This technical diagram illustrates the Alternator parts 140a within the Engine electrical system group for the 5 Series E34 520i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Compact alternator (Part #12311738351).
- Which models use the hardware listed in this Alternator parts 140a?
- The hardware and components featured in the Alternator parts 140a are specific to the 5 Series E34 520i produced during 1993. These technical specifications ensure that parts like the Compact alternator (12311738351) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator parts 140a assembly?
- Each item in the Alternator parts 140a corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Compact alternator by locating its position on the schematic, which then links to the official BMW part number 12311738351 for the Engine electrical system section.
