Alternator, individual parts 105A for BMW 3 Series E36 320i (1995)

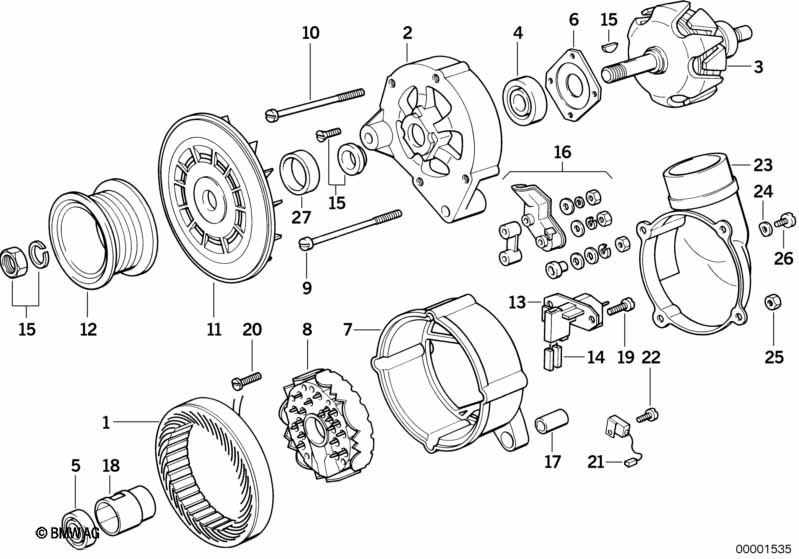

This Alternator, individual parts 105A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 500 970 BMW Nr. 12 31 1 730 753 / 1 735 403 |
|||||||||
| 01 | Stator assy | 1 | 12311738104 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing assy front | 1 | 12311738093 | $67.24 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rotor | 1 | 12311738094 | $162.94 | ENDED | Shop at ECS Tuning | ||||
| 04 | Grooved ball bearing | 52X17X17 | 1 | 12311747246 | $51.53 | ENDED | Shop at ECS Tuning | |||
| 05 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Supporting plate | 1 | 12311747247 | $3.35 | Shop at ECS Tuning | |||||
| 07 | Housing assy rear | 1 | 12311738098 | $59.43 | ENDED | Shop at ECS Tuning | ||||
| 08 | Diode assy | 1 | 12311735307 | ENDED | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | 3 | 12311738099 | $1.80 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | 1 | 12311738101 | $2.77 | Shop at ECS Tuning | |||||
| 11 | Fan wheel | BOSCH/D=146MM | 1 | 12311726934 | $37.08 | Shop at ECS Tuning | ||||
| 12 | Pulley | D=61,8MM | 1 | 12311738067 | $56.08 | ENDED | Shop at ECS Tuning | |||
| 13 | Voltage regulator | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 14 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 15 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
| 16 | Set mounting parts | B+/D* | 1 | 12311747252 | $9.57 | Shop at ECS Tuning | ||||
| 17 | Bush | 1 | 12311738103 | $12.08 | ENDED | Shop at ECS Tuning | ||||
| 18 | Ring | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 19 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 20 | Screw | 5 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 21 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 22 | Fillister-head screw | AM5X10 | 1 | 07119919412 | ENDED | Shop at ECS Tuning | ||||
| 23 | Intake manifold | BOSCH | 1 | 12311730687 | $17.74 | ENDED | Shop at ECS Tuning | |||
| 24 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 25 | Hex nut | M8-8-ZNS3 | 3 | 12/1995 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 25 | Hex nut | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 26 | Fillister head screw | M5X12-ZN | 1 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 27 | Ring | 1 | 12311738190 | $5.35 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
