Alternator, individual parts 100A for BMW 5 Series E34 540i (1995)

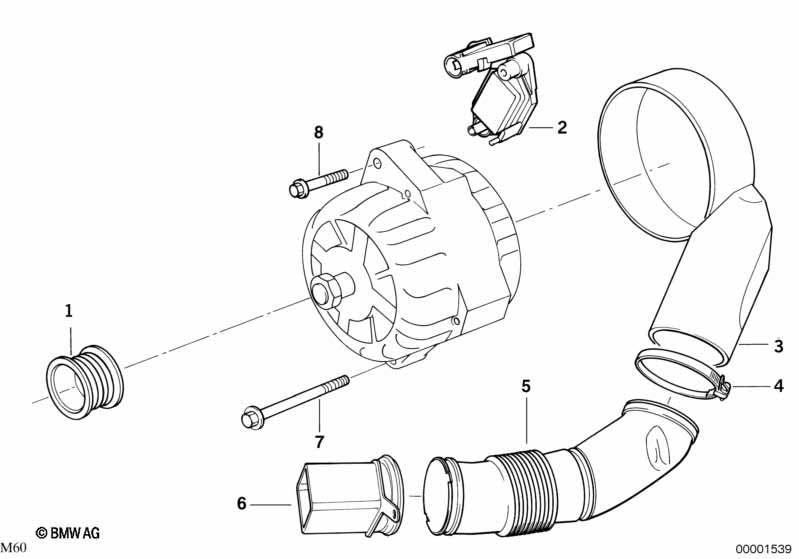

This Alternator, individual parts 100A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 541 612 BMW Nr. 12 31 1 747 205 12 31 1 704 081 |
|||||||||
| 01 | Pulley alternator | 1 | 12311747220 | $32.09 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | VALEO | 1 | 12321739435 | $124.68 | Shop at ECS Tuning | ||||
| 03 | Air duct | 1 | 12311747209 | $28.75 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
| 05 | Air channel | 1 | 12311747185 | $10.42 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
| 06 | Connector | 1 | 12311736110 | $6.07 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M8X45-Z3 | 2 | 07119912970 | $0.41 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. compact alternator | 100A | X | 12311704081 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 100A | X | 12311747205 | $661.23 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Alternator, individual parts 100A?
- This technical diagram illustrates the Alternator, individual parts 100A within the Engine electrical system group for the 5 Series E34 540i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Pulley alternator (Part #12311747220).
- Which models use the hardware listed in this Alternator, individual parts 100A?
- The hardware and components featured in the Alternator, individual parts 100A are specific to the 5 Series E34 540i produced during 1995. These technical specifications ensure that parts like the Pulley alternator (12311747220) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts 100A assembly?
- Each item in the Alternator, individual parts 100A corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Pulley alternator by locating its position on the schematic, which then links to the official BMW part number 12311747220 for the Engine electrical system section.
