Alternator, individual parts 105A for BMW 3 Series E36 M3 (1995)

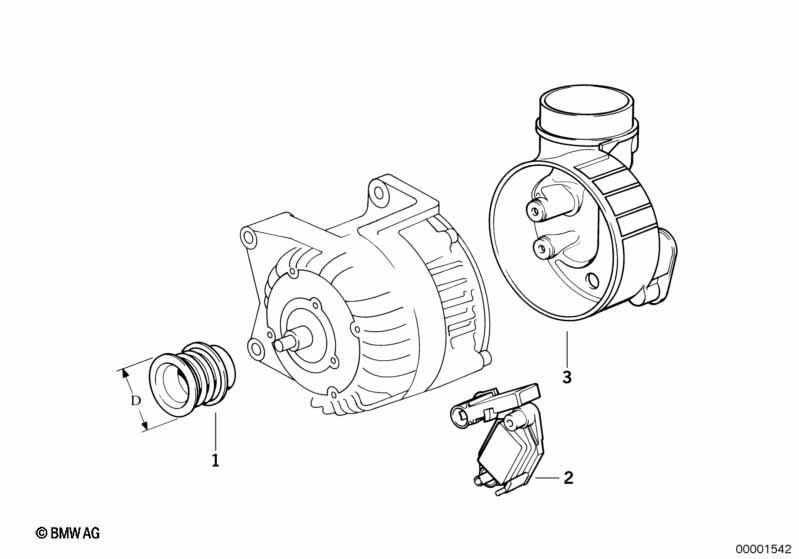

This Alternator, individual parts 105A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 541 617 BMW Nr. 12 31 1 318 079 12 31 1 403 936 |
|||||||||
| 01 | Pulley alternator | DB=55MM | 1 | 12311713945 | $32.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | VALEO | 1 | 12321739435 | $124.68 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | 1 | 12311318157 | $25.18 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Alternator, individual parts 105A?
- This technical diagram illustrates the Alternator, individual parts 105A within the Engine electrical system group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Pulley alternator (Part #12311713945).
- Which models use the hardware listed in this Alternator, individual parts 105A?
- The hardware and components featured in the Alternator, individual parts 105A are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Pulley alternator (12311713945) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts 105A assembly?
- Each item in the Alternator, individual parts 105A corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Pulley alternator by locating its position on the schematic, which then links to the official BMW part number 12311713945 for the Engine electrical system section.
