DMC Cover and Mounting Parts for BMW 3 Series E36 325i (1995)

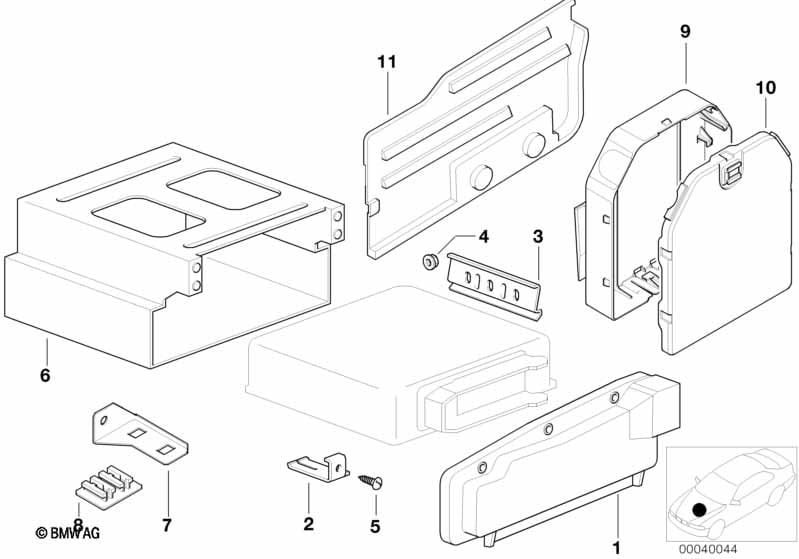

This DMC Cover and Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version south africa |
L824A=No |
|||||||||
| 01 | Cover electronic-box | 1 | 12521735108 | $17.35 | Shop at ECS Tuning | |||||
| 02 | Fixing clamp left | 1 | 12901730561 | $1.12 | Shop at ECS Tuning | |||||
| 02 | Fixing clamp right | 1 | 12901730562 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Impact plate | 1 | 12901730462 | $2.82 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Bracket, control unit | 1 | 12901730559 | $13.06 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket, control unit | 1 | 12902245152 | $17.05 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
