Alternator parts 140a for BMW 5 Series E34 520i (1993)

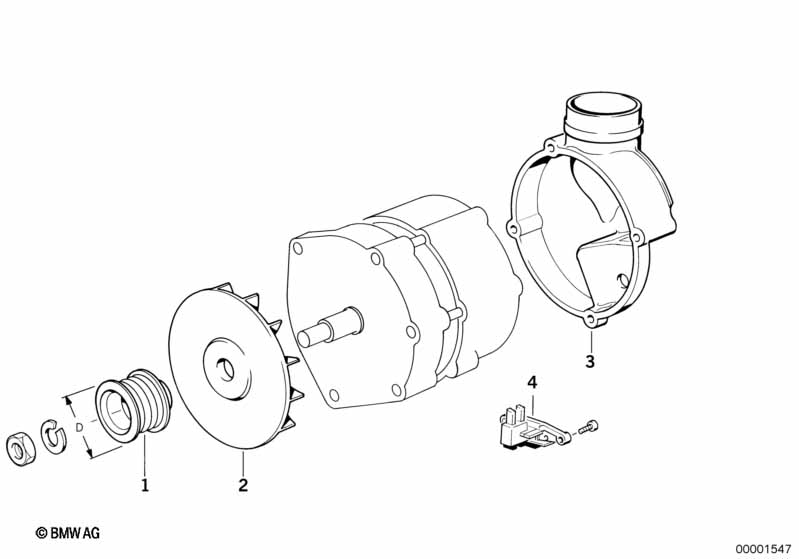

This Alternator parts 140a technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 541 481 BMW Nr. 12 31 1 730 261 12 31 1 735 686 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 140A | X | 12311730261 | Shop at ECS Tuning | |||||
| -- | Exch. generator | 140A | X | 12311735686 | $443.05 | Shop at ECS Tuning | ||||
| 01 | Pulley | D=61,8MM | 1 | 12311738067 | $56.08 | ENDED | Shop at ECS Tuning | |||
| 02 | Fan wheel | VALEO/D=146MM | 1 | 12311730595 | $30.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Intake manifold | 1 | 12311730596 | $23.72 | Shop at ECS Tuning | |||||
| 04 | Voltage regulator | VALEO | 1 | 12311748607 | $124.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
