Starter motor sep components 1.4kW for BMW 5 Series E34 525i (1990)

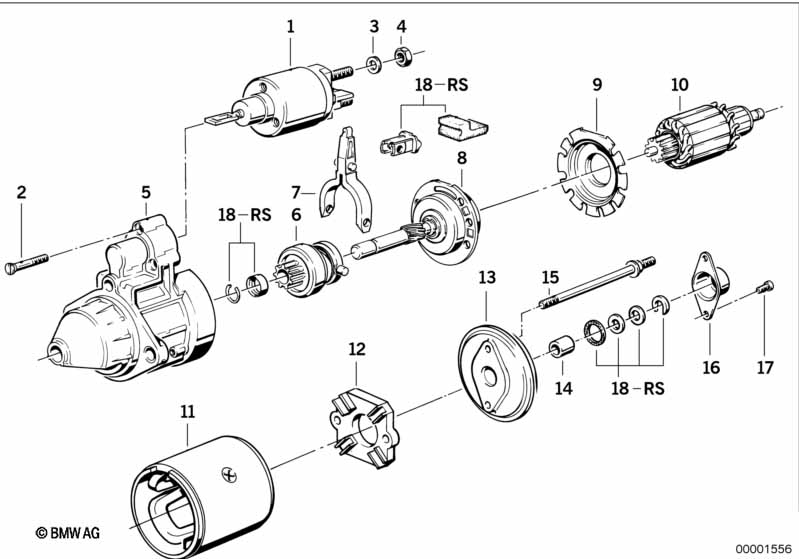

This Starter motor sep components 1.4kW technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only suitable for Bosch starter motor Typ Nr. 0 001 108 064 |
|||||||||
| 01 | Solenoid switch | 1 | 12411726039 | $140.48 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 02 | Countersunk head screw | 3 | 12411721286 | $2.45 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Housing assy front | 1 | 12411722846 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 06 | Starter pinion | 1 | 12411722844 | $57.07 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 07 | Shift lever | 1 | 12411721285 | $6.50 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 08 | Planet wheel set | 1 | 12411721280 | $223.20 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 12411738260 | $4.35 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 10 | Armature | 1 | 12411721287 | $316.94 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 12 | Brush holder plate | 1 | 12411722849 | $107.02 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 13 | Collector guiding | 1 | 12411721288 | $25.95 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 14 | Bushing | 1 | 12411721289 | $4.42 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 15 | Screw | 2 | 12411721290 | $9.15 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 16 | Covering cap | 1 | 12411721291 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 17 | Fillister-head screw | 2 | 12411722775 | $0.30 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
| 18 | Repair kit for starter | 1 | 12411721297 | $23.43 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,4KW | X | 12411720642 | $181.91 | ENDED | Shop at ECS Tuning | |||
| -- | Exchange starter motor | 1,4KW | X | 12411720643 | $174.00 | Shop at ECS Tuning | ||||
