Starter motor sep components 1.7kW for BMW 7 Series E32 730i (1988)

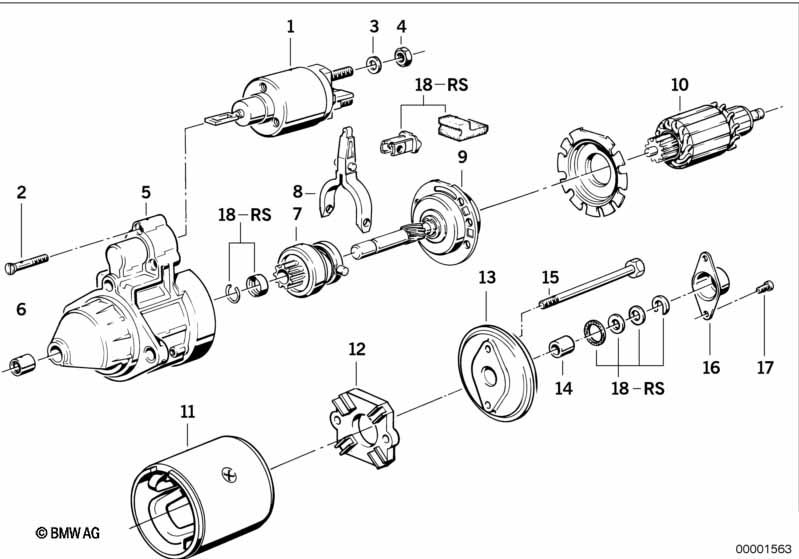

This Starter motor sep components 1.7kW technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only suitable for Bosch starter motor Typ Nr. 0 001 110 041 |
|||||||||
| only applies to | ||||||||||
| -- | Starter | 1,7KW | X | 09/1987 | 12411720663 | $615.02 | ENDED | Shop at ECS Tuning | ||
| -- | RP REMAN starter motor | 1,7KW | X | 09/1987 | 12411720664 | $377.35 | Shop at ECS Tuning | |||
| 01 | Solenoid switch | 1 | 09/1987 | 12411726039 | $140.48 | Shop at ECS Tuning | ||||
| 02 | Countersunk head screw | 3 | 09/1987 | 12411721286 | $2.45 | ENDED | Shop at ECS Tuning | |||
| 03 | Spring washer | B8 | 1 | 09/1987 | 07119933096 | $0.18 | Shop at ECS Tuning | |||
| 04 | Hex nut | 1 | 09/1987 | 12411722848 | ENDED | Shop at ECS Tuning | ||||
| 05 | Housing assy front | 1 | 09/1987 | 12411726033 | $64.17 | Shop at ECS Tuning | ||||
| 06 | Bushing | 1 | 09/1987 | 12411364308 | $4.87 | Shop at ECS Tuning | ||||
| 07 | Free wheel pinion | 1 | 09/1987 | 12411726031 | $73.72 | Shop at ECS Tuning | ||||
| 08 | Shift lever | 1 | 09/1987 | 12411721285 | $6.50 | Shop at ECS Tuning | ||||
| 09 | Planet wheel set | 1 | 09/1987 | 12411726040 | $131.69 | Shop at ECS Tuning | ||||
| 10 | Armature | 1 | 09/1987 | 12411726034 | $356.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Exciter winding | 1 | 09/1987 | 12411726042 | ENDED | Shop at ECS Tuning | ||||
| 12 | Brush holder plate | 1 | 09/1987 | 12411726041 | $215.39 | ENDED | Shop at ECS Tuning | |||
| 13 | Collector guiding | 1 | 09/1987 | 12411726035 | $18.64 | ENDED | Shop at ECS Tuning | |||
| 14 | Bushing | 1 | 09/1987 | 12411721289 | $4.42 | Shop at ECS Tuning | ||||
| 15 | Screw | 1 | 09/1987 | 12411726036 | $4.11 | Shop at ECS Tuning | ||||
| 16 | Covering cap | 1 | 09/1987 | 12411721291 | $2.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Fillister-head screw | 2 | 09/1987 | 12411722775 | $0.30 | Shop at ECS Tuning | ||||
| 18 | Repair kit for starter | 1 | 09/1987 | 12411721297 | $23.43 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
