Alternator, individual parts 80A for BMW 3 Series E30 318i (1987)

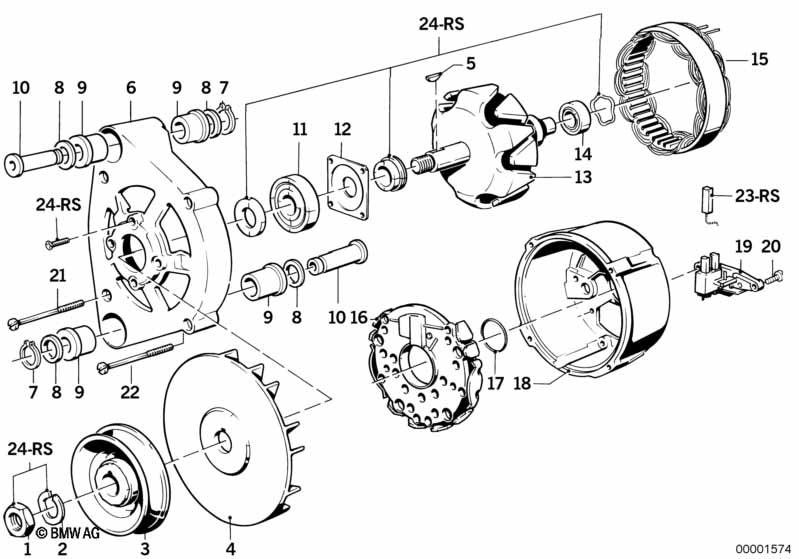

This Alternator, individual parts 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 469 595 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 80A | X | 12311284460 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. generator | 80A | X | 12311285005 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B14 | 1 | 07119933148 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Pulley | D=66MM | 1 | 12311288238 | $31.13 | Shop at ECS Tuning | ||||
| 04 | Fan wheel | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 05 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Housing assy front | 1 | 12311287734 | ENDED | Shop at ECS Tuning | |||||
| 07 | Lock Ring | 2 | 12311276226 | $2.90 | Shop at ECS Tuning | |||||
| 08 | Washer | 4 | 12311268420 | $7.16 | Shop at ECS Tuning | |||||
| 09 | Bush | LANG | 4 | 12311268447 | $10.41 | Shop at ECS Tuning | ||||
| 10 | Bush | 2 | 12311276227 | $13.99 | Shop at ECS Tuning | |||||
| 11 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 12 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rotor | 1 | 12311288423 | $382.79 | ENDED | Shop at ECS Tuning | ||||
| 14 | Grooved ball bearing | 28X12X12 | 1 | 12311714521 | $23.12 | Shop at ECS Tuning | ||||
| 15 | Stator assy | 1 | 12311727758 | $309.13 | ENDED | Shop at ECS Tuning | ||||
| 16 | Diode assy | 1 | 12311288426 | ENDED | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 12311276224 | $1.84 | ENDED | Shop at ECS Tuning | ||||
| 18 | Housing assy rear | 1 | 12311288456 | $69.19 | ENDED | Shop at ECS Tuning | ||||
| 19 | Voltage regulator | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 20 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 21 | Fillister-head screw | 3 | 12311727760 | $3.53 | Shop at ECS Tuning | |||||
| 22 | Fillister head screw | 1 | 12311738099 | $1.80 | Shop at ECS Tuning | |||||
| 23 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 24 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
