Alternator parts 90a for BMW 3 Series E30 320i (1991)

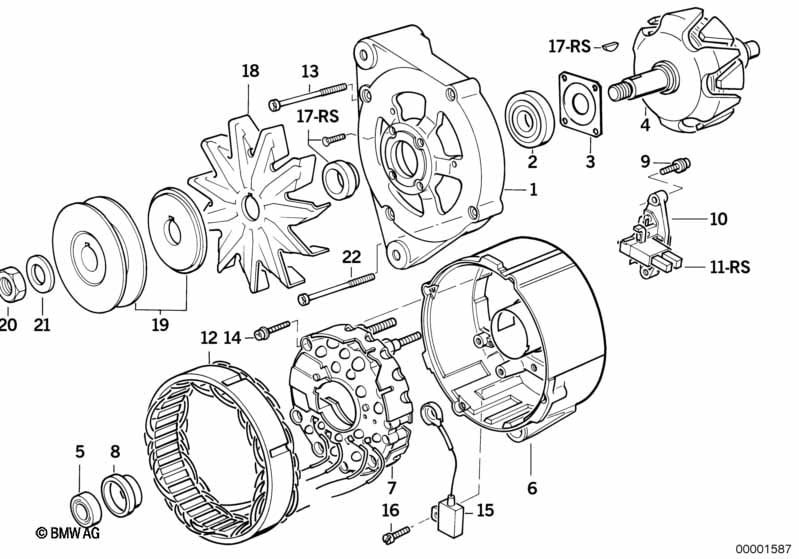

This Alternator parts 90a technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 469 779 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 90A | X | 12311713449 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. generator | 90A | X | 12311714219 | $299.25 | Shop at ECS Tuning | ||||
| 01 | Housing assy front | 1 | 12311716179 | $91.23 | ENDED | Shop at ECS Tuning | ||||
| 02 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rotor | 1 | 12311727742 | $273.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Housing assy rear | 1 | 12311716180 | $75.61 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diode assy | 1 | 12311715167 | $115.05 | ENDED | Shop at ECS Tuning | ||||
| 08 | Ring | 1 | 12311715174 | $3.68 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 10 | Voltage regulator | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 11 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 12 | Stator assy | 1 | 12311727759 | $309.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | 3 | 12311727760 | $3.53 | Shop at ECS Tuning | |||||
| 14 | Screw | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 15 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 16 | Fillister-head screw | 1 | 12311722966 | $0.70 | Shop at ECS Tuning | |||||
| 17 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fan wheel | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 19 | Pulley | D=66MM | 1 | 12311288238 | $31.13 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 21 | Wave washer | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
| 22 | Fillister head screw | 1 | 12311738099 | $1.80 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Alternator parts 90a?
- This technical diagram illustrates the Alternator parts 90a within the Engine electrical system group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Alternator (Part #12311713449).
- Which models use the hardware listed in this Alternator parts 90a?
- The hardware and components featured in the Alternator parts 90a are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Alternator (12311713449) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator parts 90a assembly?
- Each item in the Alternator parts 90a corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Alternator by locating its position on the schematic, which then links to the official BMW part number 12311713449 for the Engine electrical system section.
