Alternator parts 140a for BMW 7 Series E38 740i (1996)

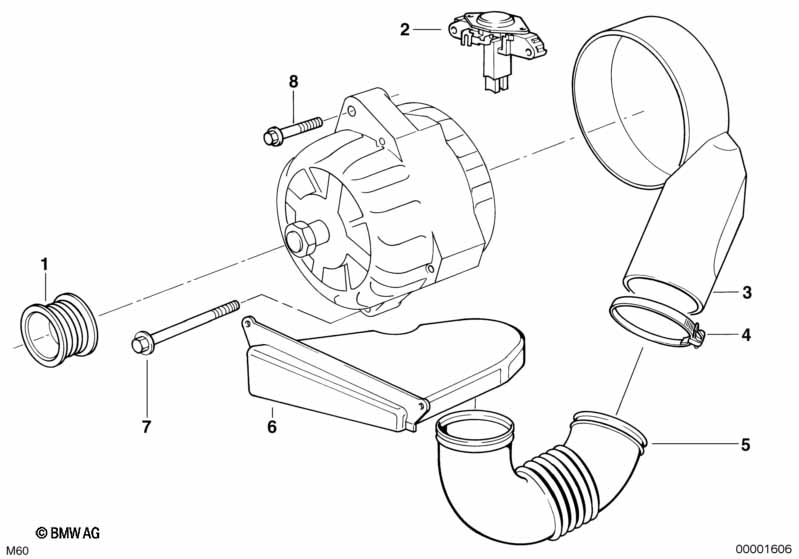

This Alternator parts 140a technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 515 002 BMW Nr. 12 31 1 702 096 / 1 741 138 Typ Nr. 0 123 515 010 BMW Nr. 12 31 1 432 831 / 832 |
|||||||||
| 01 | Pulley alternator | D=45MM | 1 | 09/1998 | 12311733782 | $42.83 | Shop at ECS Tuning | |||
| 02 | Voltage regulator | BOSCH | 1 | 09/1998 | 12311713491 | $157.93 | Shop at ECS Tuning | |||
| 03 | Alternator air duct | 1 | 09/1998 | 12311432428 | $28.75 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L59-66 | 1 | 09/1998 | 07129952125 | $1.64 | Shop at ECS Tuning | |||
| 05 | Air channel | 1 | 09/1998 | 12311702925 | $7.88 | ENDED | Shop at ECS Tuning | |||
| 06 | Connector | 1 | 09/1998 | 12311741592 | $7.53 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X45-8.8-ZNS3 | 3 | 09/1998 | 07119903931 | $0.71 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
