Cable Harness Fixings for BMW 5 Series E39 540iP (2000)

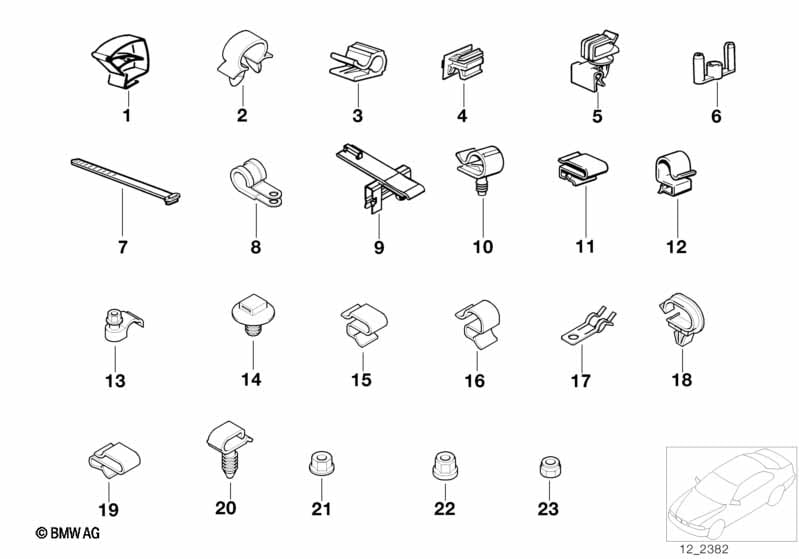

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Cable holder | D=12,8MM | 2 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Cable holder | D=9MM | X | 12511707788 | $0.78 | Shop at ECS Tuning | ||||
| 04 | Holder | X | 61131382162 | $1.28 | Shop at ECS Tuning | |||||
| 05 | Cable holder | 3 | 24507557220 | $1.88 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 12521714254 | $1.00 | Shop at ECS Tuning | |||||
| 07 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Clamp | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 08 | Cable holder | D=15MM | X | 12527575154 | $1.68 | Shop at ECS Tuning | ||||
| 09 | Cable holder | 2 | 12521704608 | $0.89 | Shop at ECS Tuning | |||||
| 10 | Tubing support | 2 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 11 | Fixing clamp | A=3,5 - 6,0MM | 8 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 12 | Cable clamp | 5 | 11787549563 | $1.04 | Shop at ECS Tuning | |||||
| 12 | Holder | 2 | 61278662930 | Shop at ECS Tuning | ||||||
| 13 | Cable holder | X | 12521741343 | $0.68 | Shop at ECS Tuning | |||||
| 14 | Cable strap bracket | X | 61131379084 | $0.42 | Shop at ECS Tuning | |||||
| 15 | Fixing clamp | X | 11787547213 | $0.40 | Shop at ECS Tuning | |||||
| 16 | Cable clamp | D=15/B=4 | X | 61131351044 | $0.42 | Shop at ECS Tuning | ||||
| 17 | Cable holder | X | 12141717663 | $1.45 | Shop at ECS Tuning | |||||
| 18 | Cable holder | 13,5X23,5MM | X | 61131269331 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 19 | Fixing clamp | 1 | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| 20 | Cable clamp | 2 | 12521742686 | $0.50 | Shop at ECS Tuning | |||||
| 21 | Flange nut | M5 | 1 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 21 | Nut | M6 | 6 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 21 | Hex nut | M8 | 7 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 22 | Plastic nut for coarse threaded pin | M6 | 8 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning |
