Control unit box for BMW 7 Series E38 730i (1996)

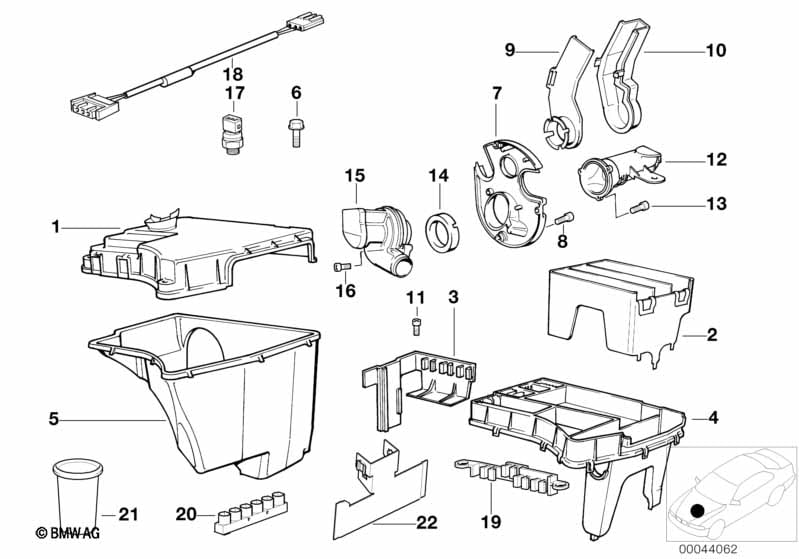

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 12901702624 | $50.57 | ENDED | Shop at ECS Tuning | ||||
| 02 | Carrier control unit | 1 | 09/1997 | 12901741677 | $33.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Carrier relay | 1 | 12901742922 | $3.87 | Shop at ECS Tuning | |||||
| 04 | Center part | 1 | 12901747663 | $24.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bottom part | 1 | 12901435160 | $35.35 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Cover blower | 1 | 01/1995 | 12901742561 | $7.73 | Shop at ECS Tuning | ||||
| 08 | Screw for thermoplastic plastics | TS 5X12 | 4 | 01/1995 | 07/2001 | 07129925820 | $0.36 | ENDED | Shop at ECS Tuning | |
| 09 | Air duct lower | 1 | 12901702044 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 10 | Air duct upper | 1 | 12901702045 | $11.05 | Shop at ECS Tuning | |||||
| 11 | Screw for thermoplastic plastics | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 12 | Air channel | 1 | 12901702912 | $7.51 | ENDED | Shop at ECS Tuning | ||||
| 13 | Screw for thermoplastic plastics | M5X12 | 3 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Grommet | 1 | 12901747896 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 15 | Blower unit | 1 | 01/1995 | 12901745181 | $167.11 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapping screw | ST3,5X16 | 2 | 07119905240 | Shop at ECS Tuning | |||||
| 17 | Temperature switch | 35 CEL | 1 | 12521741900 | $31.13 | Shop at ECS Tuning | ||||
| 19 | Carrier relay | 1 | 12901747915 | $2.47 | Shop at ECS Tuning | |||||
| 21 | Protective sleeve | D=25MM/L=45MM | 1 | 12901742813 | $0.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Control unit box?
- This technical diagram illustrates the Control unit box within the Engine electrical system group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #12901702624).
- Which models use the hardware listed in this Control unit box?
- The hardware and components featured in the Control unit box are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Cover (12901702624) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit box assembly?
- Each item in the Control unit box corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 12901702624 for the Engine electrical system section.
