Alternatormounting parts for BMW 3 Series E36 318i (1995)

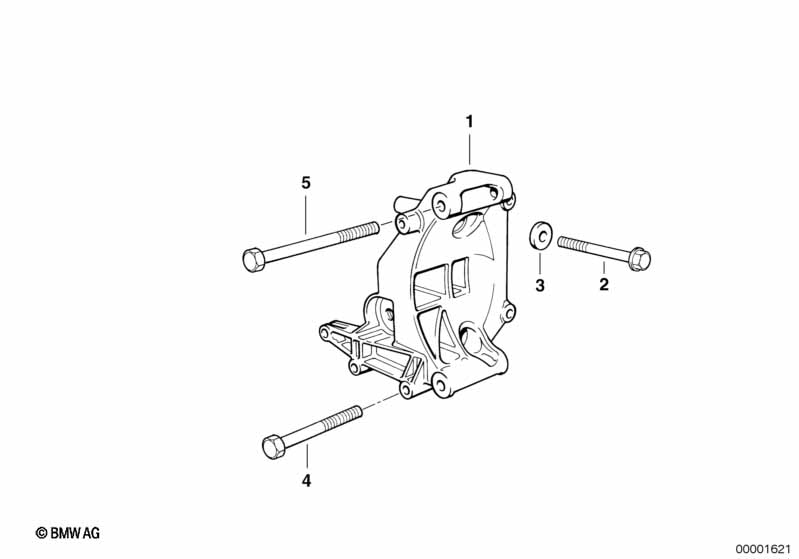

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 09/1993 | 12311739514 | $105.83 | +core | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M8X85-U1-8.8 | 2 | 09/1993 | 07119906141 | $1.89 | Shop at ECS Tuning | |||
| 03 | Washer | 8,4X16X1,6-ZNNV | 2 | 09/1993 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X75-Z1-ZNS3 | 3 | 09/1993 | 07119903947 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M10X110-Z1 | 2 | 09/1993 | 11/1997 | 07119900476 | $1.20 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Alternatormounting parts?
- This technical diagram illustrates the Alternatormounting parts within the Engine electrical system group for the 3 Series E36 318i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #12311739514).
- Which models use the hardware listed in this Alternatormounting parts?
- The hardware and components featured in the Alternatormounting parts are specific to the 3 Series E36 318i produced during 1995. These technical specifications ensure that parts like the Supporting bracket (12311739514) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternatormounting parts assembly?
- Each item in the Alternatormounting parts corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 12311739514 for the Engine electrical system section.
