Alternator parts 90a for BMW 3 Series E36 318is (1995)

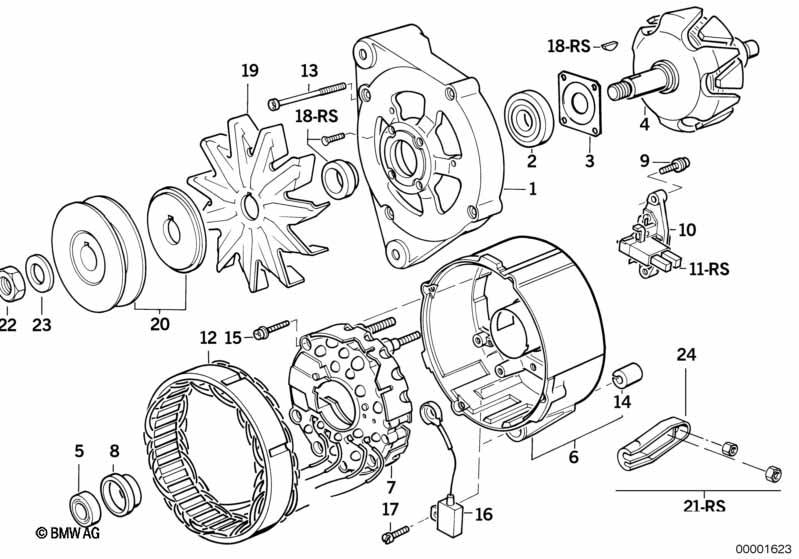

This Alternator parts 90a technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 469 914 BMW Nr. 12 31 1 721 921 / 923 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 90A | X | 12311721921 | $655.29 | ENDED | Shop at ECS Tuning | |||
| -- | Exch. generator | 90A | X | 12311721923 | $472.08 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing assy front | 1 | 12311727739 | $92.35 | ENDED | Shop at ECS Tuning | ||||
| 02 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rotor | 1 | 12311727742 | $273.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Housing assy rear | 1 | 12311727747 | $56.08 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diode assy | 1 | 12311727750 | $176.33 | ENDED | Shop at ECS Tuning | ||||
| 08 | Ring | 1 | 12311727751 | $2.25 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 10 | Voltage regulator | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 11 | Carbon brush set | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 12 | Stator assy | 1 | 12311727759 | $309.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | 4 | 12311727760 | $3.53 | Shop at ECS Tuning | |||||
| 14 | Bush | 1 | 12311727761 | $11.30 | Shop at ECS Tuning | |||||
| 15 | Screw | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 16 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 17 | Fillister-head screw | AM5X10 | 1 | 07119919412 | ENDED | Shop at ECS Tuning | ||||
| 18 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fan wheel | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 20 | Pulley | 1 | 12311721776 | $56.08 | ENDED | Shop at ECS Tuning | ||||
| 21 | Parts set | B+/D+ | 1 | 12311727764 | $15.68 | ENDED | Shop at ECS Tuning | |||
| 22 | Hex nut | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 23 | Wave washer | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
| 24 | Insulating cover | BOSCH | 1 | 12311727383 | $8.55 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 12521727384 | $1.28 | ENDED | Shop at ECS Tuning | ||||
