Alternator, individual parts 70A for BMW 3 Series E36 318is (1996)

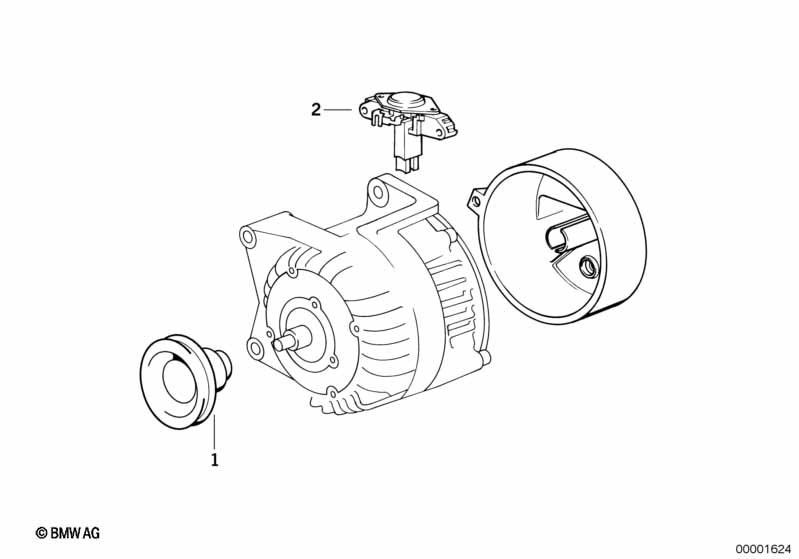

This Alternator, individual parts 70A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 315 004 BMW Nr. 12 31 1 739 362 / 363 |
|||||||||
| only applies to | ||||||||||
| -- | Compact alternator | 70A | X | 12311739362 | ENDED | Shop at ECS Tuning | ||||
| -- | Compact alternator | 70A | X | 12311739363 | $393.00 | Shop at ECS Tuning | ||||
| 01 | Pulley | 1 | 12311739366 | ENDED | Shop at ECS Tuning | |||||
| 02 | Voltage regulator | 1 | 12311739365 | $124.68 | +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Alternator, individual parts 70A?
- This technical diagram illustrates the Alternator, individual parts 70A within the Engine electrical system group for the 3 Series E36 318is produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Compact alternator (Part #12311739362).
- Which models use the hardware listed in this Alternator, individual parts 70A?
- The hardware and components featured in the Alternator, individual parts 70A are specific to the 3 Series E36 318is produced during 1996. These technical specifications ensure that parts like the Compact alternator (12311739362) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts 70A assembly?
- Each item in the Alternator, individual parts 70A corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Compact alternator by locating its position on the schematic, which then links to the official BMW part number 12311739362 for the Engine electrical system section.
