Alternator, individual parts 80A for BMW 3 Series E36 318ti (1996)

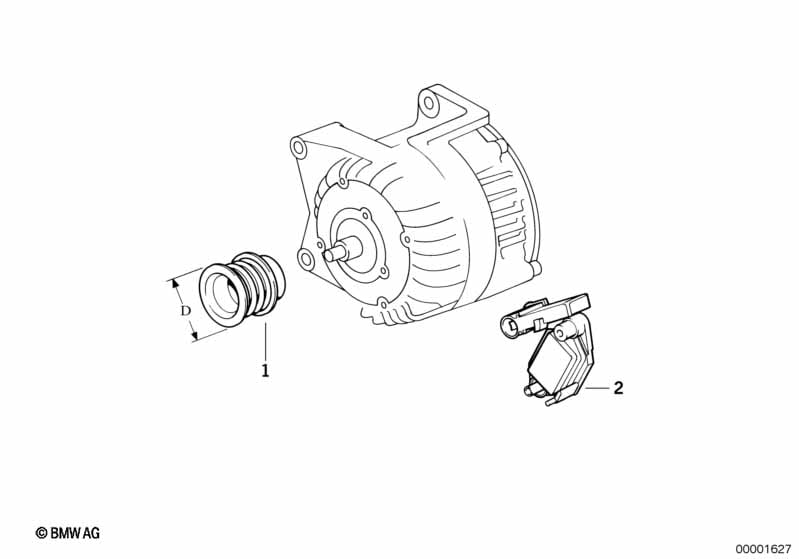

This Alternator, individual parts 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR VALEO Typ Nr. 2 541 697 BMW Nr. 12 31 1 247 288 / 310 |
|||||||||
| 01 | Pulley | D=52MM | 1 | 12311247306 | $56.08 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 80A | X | 12311247288 | $560.54 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Compact alternator | 80A | X | 12311247310 | $435.12 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | VALEO | 1 | 09/1997 | 12321739435 | $124.68 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compact alternator | 80A | X | 09/1997 | 12311247288 | $560.54 | ENDED, +core | Shop at ECS Tuning | ||
| -- | Compact alternator | 80A | X | 09/1997 | 12311247310 | $435.12 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
