Engine wiring harness for BMW 3 Series E36 318i (1999)

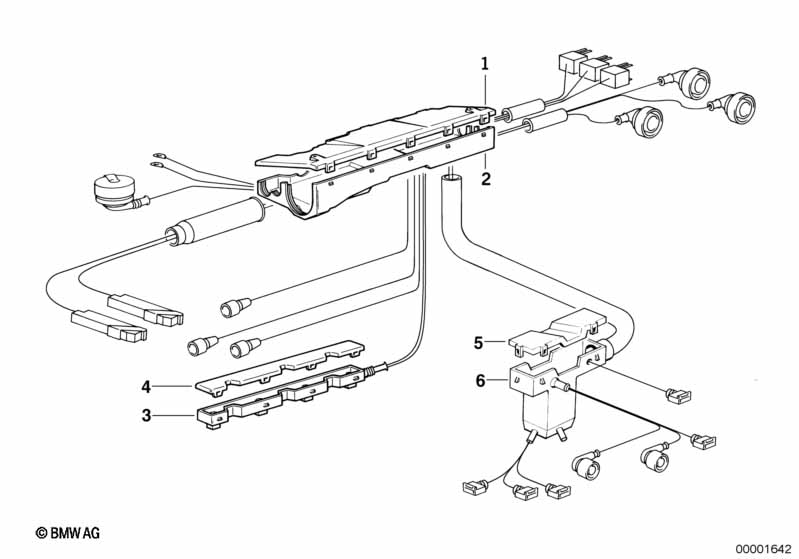

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering Upper | 1 | 12521724637 | $12.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing lower part | 1 | 12521739036 | $9.63 | Shop at ECS Tuning | |||||
| 03 | Plug-board | 1 | 12521718188 | $6.30 | Shop at ECS Tuning | |||||
| 04 | Covering Upper | 1 | 12521718189 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering Upper | 1 | 12521247094 | $5.81 | ENDED | Shop at ECS Tuning | ||||
| 06 | Housing lower part | 1 | 12521247093 | $12.05 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
