Alternator parts 140a for BMW 5 Series E39 528i (2000)

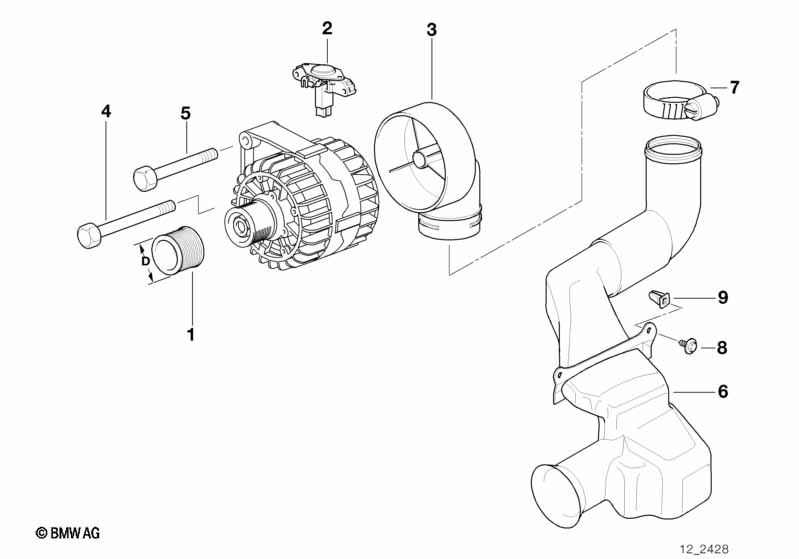

This Alternator parts 140a technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 515 004 BMW Nr. 12 31 1 740 629 / 631 ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 515 010 BMW Nr. 12 31 1 432 831 / 832 |
|||||||||
| 01 | Pulley alternator | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 12311740629 | $592.11 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Voltage regulator | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | D=65MM | 1 | 12311436637 | $25.58 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X150 | 1 | 07119904677 | $3.82 | Shop at ECS Tuning | ||||
| 06 | Air channel | 1 | 12311744460 | $24.78 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Alternator parts 140a?
- This technical diagram illustrates the Alternator parts 140a within the Engine electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Pulley alternator (Part #12311432988).
- Which models use the hardware listed in this Alternator parts 140a?
- The hardware and components featured in the Alternator parts 140a are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Pulley alternator (12311432988) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator parts 140a assembly?
- Each item in the Alternator parts 140a corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Pulley alternator by locating its position on the schematic, which then links to the official BMW part number 12311432988 for the Engine electrical system section.
