Alternator parts 140a for BMW 7 Series E38 728i (2001)

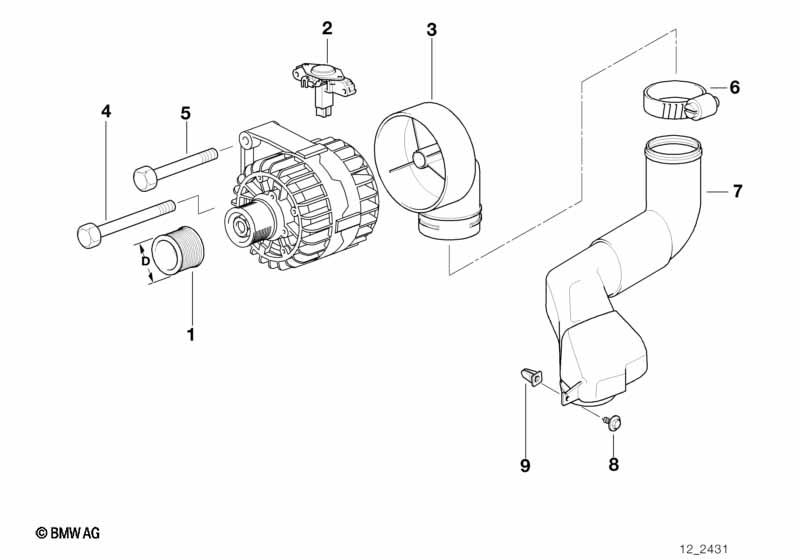

This Alternator parts 140a technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 515 004 BMW Nr. 12 31 1 740 629 / 631 |
|||||||||
| 01 | Pulley alternator | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 12311740629 | $592.11 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Exch. compact alternator | 140A | X | 12311740631 | $421.85 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 12311740629 | $592.11 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Exch. compact alternator | 140A | X | 12311740631 | $421.85 | ENDED | Shop at ECS Tuning | |||
| 03 | Intake manifold | D=65MM | 1 | 12311436637 | $25.58 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 12311740629 | $592.11 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Exch. compact alternator | 140A | X | 12311740631 | $421.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X150 | 1 | 07119904677 | $3.82 | Shop at ECS Tuning | ||||
| 07 | Air channel | 1 | 12311744671 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Compact alternator | 140A | X | 12311740629 | $592.11 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Exch. compact alternator | 140A | X | 12311740631 | $421.85 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
