Battery cable for BMW 5 Series E39 528i (2000)

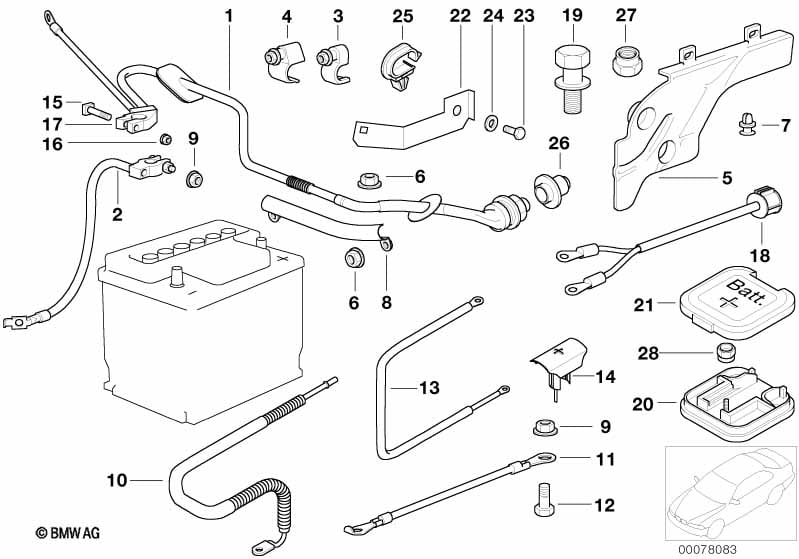

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable (plus pole) | SBK | 1 | 09/1997 | 12421436888 | $276.98 | +core | Shop at ECS Tuning | ||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 01 | Battery cable (plus pole) | SBK | 1 | 09/1997 | 12421439247 | $234.36 | +core | Shop at ECS Tuning | ||
| 02 | Battery cable negative | 1 | 12421436910 | $24.44 | Shop at ECS Tuning | |||||
| 03 | Clamp | 4 | 12521710686 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 12521702797 | $8.03 | Shop at ECS Tuning | |||||
| 06 | Plastic nut for coarse threaded pin | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 2 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 08 | Cable guide | 1 | 12421740751 | $2.92 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Cable, start motor supp point B+ | 1 | 12421744987 | $29.33 | ENDED | Shop at ECS Tuning | ||||
| 11 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 13 | Cable alternator-starter | 1 | 12421427238 | $50.13 | Shop at ECS Tuning | |||||
| 14 | Covering base B+ | 1 | 12421433212 | $4.63 | Shop at ECS Tuning | |||||
| 17 | Rep.kit f safety battery terminal clamp | 50 QMM | 1 | 09/1997 | 12421733937 | $381.44 | Shop at ECS Tuning | |||
| 19 | Screw anchor point | B+ | 1 | 12421433178 | $4.43 | Shop at ECS Tuning | ||||
| 20 | Base B+ | 1 | 12421427310 | $16.75 | ENDED | Shop at ECS Tuning | ||||
