Alternator, individual parts 120A for BMW 8 Series E31 840Ci (1999)

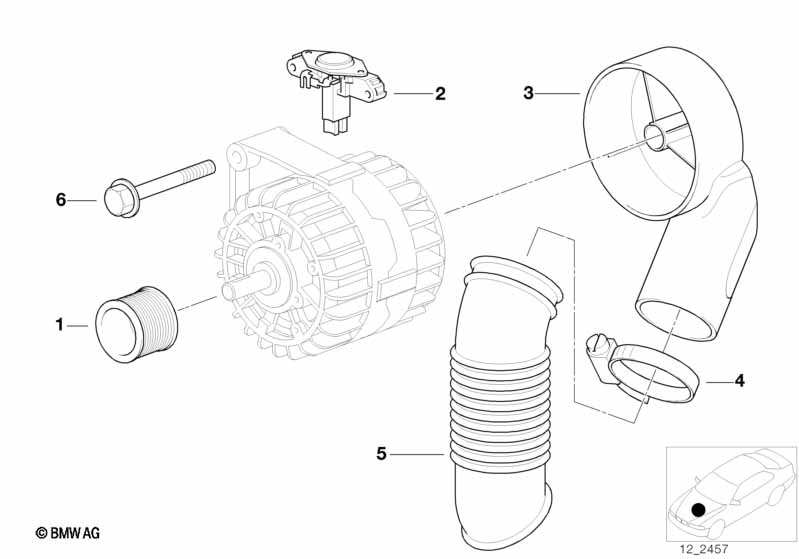

This Alternator, individual parts 120A technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ no. 0 123 515 023, BMW no. 12 31 1 433 265 / 266 |
|||||||||
| 01 | Pulley alternator | D=48MM | 1 | 12311432833 | $42.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | 1 | 12311436019 | $28.75 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 05 | Air channel | 1 | 12311747565 | $10.12 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X45-8.8-ZNS3 | 3 | 07119903931 | $0.71 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840Ci Alternator, individual parts 120A?
- This technical diagram illustrates the Alternator, individual parts 120A within the Engine electrical system group for the 8 Series E31 840Ci produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Pulley alternator (Part #12311432833).
- Which models use the hardware listed in this Alternator, individual parts 120A?
- The hardware and components featured in the Alternator, individual parts 120A are specific to the 8 Series E31 840Ci produced during 1999. These technical specifications ensure that parts like the Pulley alternator (12311432833) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts 120A assembly?
- Each item in the Alternator, individual parts 120A corresponds to the numbered list below the illustration. For the 8 Series E31 840Ci, you can identify the Pulley alternator by locating its position on the schematic, which then links to the official BMW part number 12311432833 for the Engine electrical system section.
