Alternator, individual parts for BMW 3 Series E21 320 (1979)

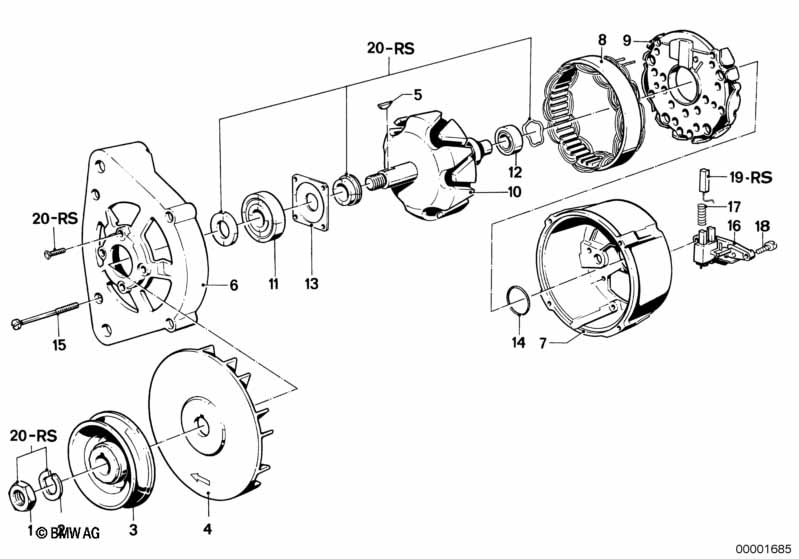

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr.0 120 489 044 = BMW 12 31 1 277 230 Typ Nr.0 120 489 686 = BMW 12 31 1 361 374 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 55A | X | 12311277230 | ENDED | Shop at ECS Tuning | ||||
| -- | Alternator | 55A | X | 12311361374 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B14 | 1 | 07119933148 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Pulley | 1 | 12311361611 | $19.60 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fan wheel | 1 | 12311350199 | $14.54 | Shop at ECS Tuning | |||||
| 05 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Housing assy front | 1 | 12311268414 | ENDED | Shop at ECS Tuning | |||||
| 07 | Housing assy rear | 1 | 12311266719 | ENDED | Shop at ECS Tuning | |||||
| 08 | Stator assy | 1 | 12311354676 | ENDED | Shop at ECS Tuning | |||||
| 09 | Diode assy | 1 | 12311358048 | $73.94 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rotor | 1 | 12311266721 | ENDED | Shop at ECS Tuning | |||||
| 11 | Grooved ball bearing | 40X17X12 | 1 | 12311714522 | $17.93 | ENDED | Shop at ECS Tuning | |||
| 12 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 13 | Supporting plate | 1 | 12311459279 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fillister-head screw | 4 | 12311268410 | $2.24 | ENDED | Shop at ECS Tuning | ||||
| 16 | Voltage regulator | BOSCH | 1 | 12311286073 | $63.58 | ENDED | Shop at ECS Tuning | |||
| 17 | Compression spring | 1 | 12311268412 | $0.35 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 19 | Carbon brush set | 2 | 12311354681 | $4.08 | ENDED | Shop at ECS Tuning | ||||
| 20 | Repair kit rotor | 1 | 12311350332 | $14.45 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
