Starter mounting hardware for BMW R45-R65LS..78-85 R65LS (1985)

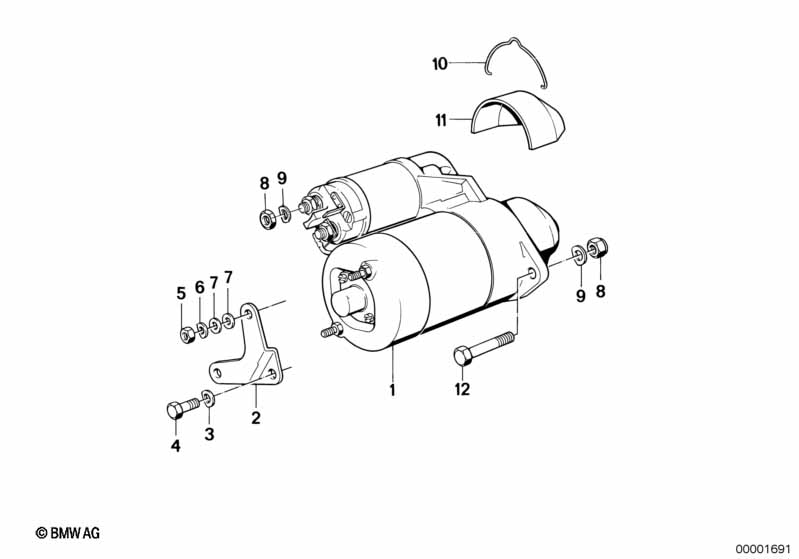

This Starter mounting hardware technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Support | 1 | 12411351590 | $5.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X16-8.8 ZN | 1 | 07119913466 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-ZNS | 2 | 07119922856 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | A5,3-140 HV-ZNS | 4 | 07/1987 | 07119931029 | $0.40 | ENDED | Shop at ECS Tuning | ||
| 08 | Self-locking hex nut | M8-8-ZNS | 4 | 07129964675 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 09 | Wave washer | B8 | 2 | 07/1987 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Wire-strap | 1 | 11141337171 | $12.50 | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 11141255793 | $24.80 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X45 | 2 | 07119912506 | $0.41 | ENDED | Shop at ECS Tuning |
