Starter single parts / Bosch for BMW R45-R65LS..78-85 R65LS (1985)

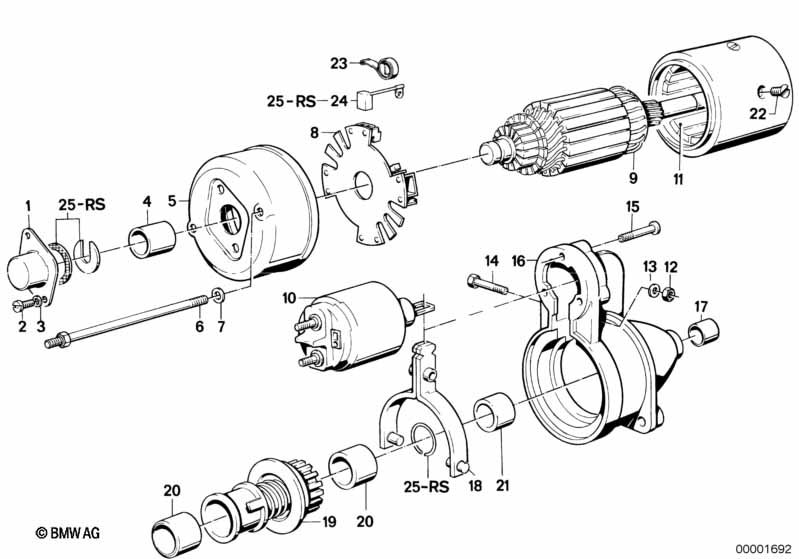

This Starter single parts / Bosch technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cap | 1 | 12411352539 | $1.32 | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | AM4X8 | 2 | 12/1995 | 07119919367 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 03 | Wave washer | B4 | 2 | 07119932100 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Bushing | 1 | 12411722916 | $3.85 | Shop at ECS Tuning | |||||
| 05 | Collector guiding | 1 | 12411352534 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | 2 | 12411352538 | $2.71 | Shop at ECS Tuning | |||||
| 07 | Washer | A5,3-140 HV-ZNS | 2 | 12/1995 | 07119931029 | $0.40 | ENDED | Shop at ECS Tuning | ||
| 08 | Brush holder plate | 1 | 12411352535 | $58.21 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Armature | 1 | 12411243139 | $191.64 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Solenoid switch | 1 | 12411243142 | $183.55 | +core | Shop at ECS Tuning | ||||
| 11 | Exciter winding | 1 | 12411243135 | $99.72 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Hex nut | M6-04-2-ZN | 1 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Fillister-head screw | 1 | 12411352529 | $1.93 | Shop at ECS Tuning | |||||
| 15 | Countersunk head screw | 1 | 12411243143 | $3.00 | Shop at ECS Tuning | |||||
| 16 | Housing assy front | 1 | 12411243137 | $139.04 | +core | Shop at ECS Tuning | ||||
| 17 | Bushing | 1 | 12411352527 | $4.77 | ENDED | Shop at ECS Tuning | ||||
| 18 | Shift lever | 1 | 12411243138 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| 19 | Starter pinion | 1 | 12411243402 | $70.77 | +core | Shop at ECS Tuning | ||||
| 20 | Bushing | 1 | 11511722914 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 21 | Ring | 1 | 12411722915 | $3.63 | Shop at ECS Tuning | |||||
| 22 | Countersunk head screw | M8X10-4.8 PHR | 4 | 07119900147 | $4.05 | Shop at ECS Tuning | ||||
| 23 | Compression spring | 4 | 12411352537 | $3.90 | Shop at ECS Tuning | |||||
| 24 | Carbon brush set | 1 | 12411352536 | $20.94 | Shop at ECS Tuning | |||||
| 25 | Repair kit for starter | 1 | 12411352541 | $48.83 | Shop at ECS Tuning |
