Ignition control unit for BMW R45-R65LS..78-85 R65LS (1985)

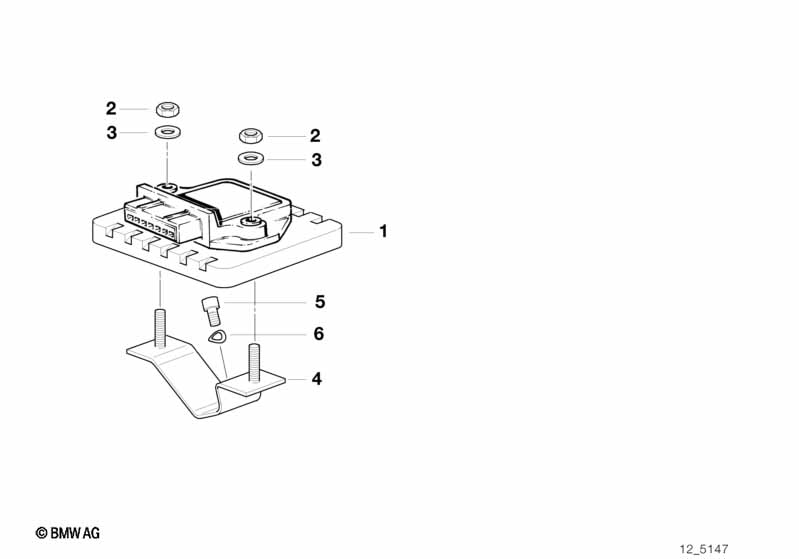

This Ignition control unit technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition control unit | 1 | 12142325284 | $186.20 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ignition control unit bracket | 1 | 61311244832 | $5.15 | Shop at ECS Tuning | |||||
| -- | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| -- | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| -- | Hex nut | M5 | 2 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| -- | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex nut | M5 | 2 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 03 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 03 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Ignition control unit bracket | 1 | 61311244832 | $5.15 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Ignition control unit?
- This technical diagram illustrates the Ignition control unit within the Engine electrical system group for the R45-R65LS..78-85 R65LS produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Ignition control unit (Part #12142325284).
- Which models use the hardware listed in this Ignition control unit?
- The hardware and components featured in the Ignition control unit are specific to the R45-R65LS..78-85 R65LS produced during 1985. These technical specifications ensure that parts like the Ignition control unit (12142325284) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ignition control unit assembly?
- Each item in the Ignition control unit corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Ignition control unit by locating its position on the schematic, which then links to the official BMW part number 12142325284 for the Engine electrical system section.
