Distributor-single parts for BMW 5 Series E12 525 (1976)

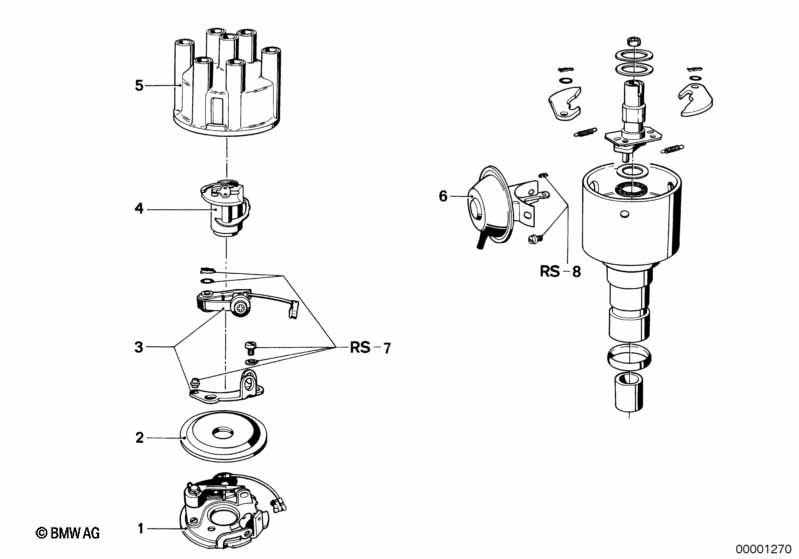

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr.0 231 169 007 = 12 11 1 353 643 Typ Nr.0 231 162 002 = 12 11 1 353 646 Typ Nr.0 231 184 008 = 12 11 1 271 732 Typ Nr.0 231 162 004 = 12 11 1 271 744 |
|||||||||
| 01 | Contactbreaker plate | 1 | 12111352174 | $137.60 | Shop at ECS Tuning | |||||
| 02 | Kit dust cap | 1 | 12111357227 | $3.60 | Shop at ECS Tuning | |||||
| 03 | Repair kit contact breaker | 1 | 12111267393 | $9.18 | Shop at ECS Tuning | |||||
| 04 | Rotor | 5000-OHM | 1 | 12111362221 | $26.90 | ENDED | Shop at ECS Tuning | |||
| 05 | Distributor cap | 1 | 12111286649 | $36.74 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271732 | $611.70 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111271744 | $518.13 | ENDED | Shop at ECS Tuning | ||||
| 05 | Distributor cap | 1 | 12111351446 | $24.10 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| 05 | Distributor cap | 1 | 12111354501 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271732 | $611.70 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111271744 | $518.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111353643 | ENDED | Shop at ECS Tuning | |||||
| -- | Distributor | X | 12111353646 | $468.72 | ENDED | Shop at ECS Tuning | ||||
| 06 | Vacuum regulator | 1 | 12111353118 | $181.09 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271732 | $611.70 | ENDED | Shop at ECS Tuning | ||||
| 06 | Vacuum regulator | 1 | 12111351445 | $84.91 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271732 | $611.70 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111353643 | ENDED | Shop at ECS Tuning | |||||
| 06 | Vacuum regulator | 1 | 12111270946 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271744 | $518.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111353646 | $468.72 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 06 | Vacuum regulator | 1 | 12111270942 | $74.21 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111271744 | $518.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Set mounting parts | 1 | 12111351440 | $11.53 | ENDED | Shop at ECS Tuning | ||||
| 08 | Repair set vacuum regulator | 1 | 12111351441 | $11.27 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
