Ignition wiring for BMW 7 Series E23 735i (1982)

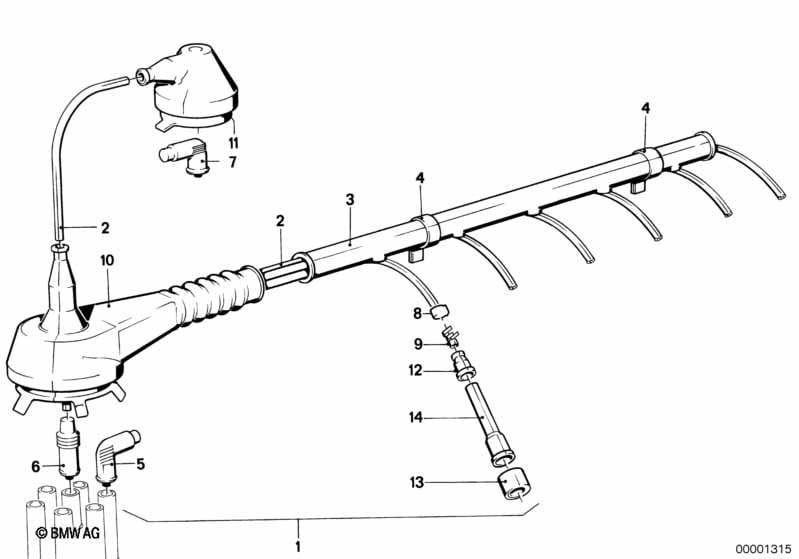

This Ignition wiring technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Ignition wiring tube | 1 | 05/1983 | 12121289413 | $7.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Ignition wiring tube | 1 | 05/1983 | 12121359367 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pipe clamp | 2 | 05/1983 | 12121350635 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Suppressing socket | 6 | 12121289844 | Shop at ECS Tuning | ||||||
| 07 | Suppressing socket | 1000-OHM | 1 | 09/1981 | 05/1983 | 12121289841 | $10.24 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Circular connector | X | 09/1981 | 05/1983 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | ||
| 08 | Identification ring | ZYL.1 | 2 | 12121706186 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Identification ring | ZYL.2 | 2 | 12121706187 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Identification ring | ZYL.3 | 2 | 12121706188 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Identification ring | ZYL.4 | 2 | 12121706189 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Identification ring | ZYL.5 | 2 | 12121706190 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Identification ring | ZYL.6 | 2 | 12121706191 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 09 | Circular connector | X | 05/1983 | 12121363327 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Circular connector | X | 05/1983 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
