Engine wiring harness for BMW 3 Series E30 320i (1992)

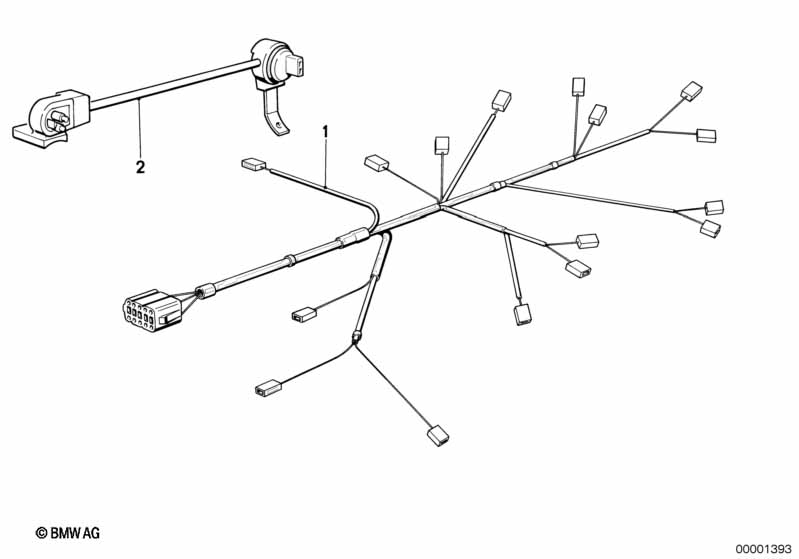

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Plug-board injection valve | 1 | 05/1988 | 12511719606 | $174.90 | ENDED | Shop at ECS Tuning | |||
| 01 | Engine wiring harness DME | 1 | 01/1989 | 12511724417 | $801.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Engine wiring harness DME+EH | 1 | 01/1989 | 12511724419 | $810.36 | ENDED | Shop at ECS Tuning | |||
