Cable holder for BMW 6 Series E24 633CSi (1979)

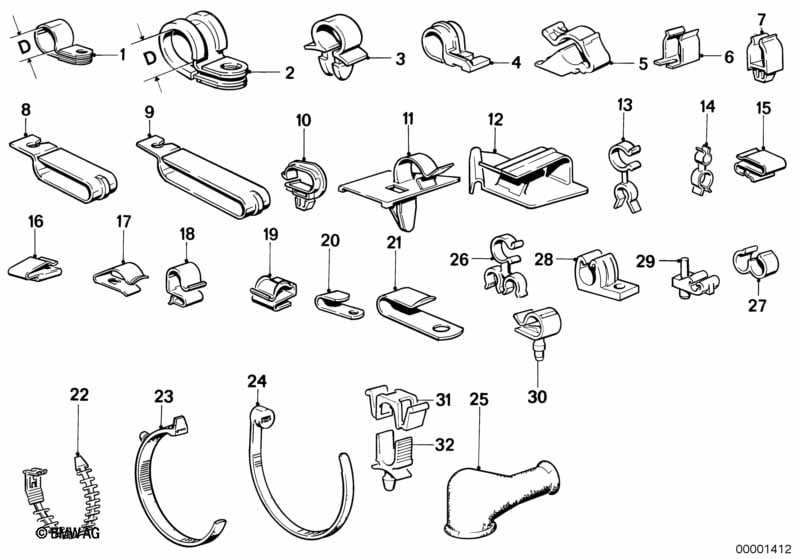

This Cable holder technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | D=8/6,4 | 1 | 11141274032 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | D=32/6,4 | 1 | 11741278532 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | D=10/6,4 | 1 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=23/6,4 | 1 | 12521270936 | $1.77 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=16/8,4 | 1 | 12521271695 | $2.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | D=8/6,4 | 1 | 12521279635 | $1.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | D=13/8,4 | 1 | 61131356639 | $2.83 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=6/6,3 | 1 | 61131363443 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | D=18/6,4 | 1 | 64503450202 | $3.12 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=13/6,4 | 1 | 12527575155 | Shop at ECS Tuning | |||||
| 02 | Clamp | D=20/6,4 | 1 | 64531356622 | $1.72 | Shop at ECS Tuning | ||||
| 02 | Clamp | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 03 | Cable holder | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 03 | Cable holder | D=12,8MM | 1 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Clamp | 12-16MM | 1 | 21521119300 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | D=10MM | 1 | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Cable holder | D=13-16MM | 1 | 61131368622 | $4.23 | Shop at ECS Tuning | ||||
| 06 | Bracket breather pipe | 1 | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 07 | Cable holder | D=10MM | 1 | 61131269273 | $1.97 | Shop at ECS Tuning | ||||
| 08 | Cable holder | 1 | 12521269327 | $1.50 | Shop at ECS Tuning | |||||
| 09 | Cable holder | 1 | 61131269349 | $0.84 | Shop at ECS Tuning | |||||
| 10 | Cable holder | 13,5X23,5MM | 1 | 61131269331 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable holder | D=9MM | 1 | 61131355190 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 12 | Cable holder | 1 | 61131356742 | $1.15 | ENDED | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 11781279705 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cable holder | 1 | 12521273174 | $2.68 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cable holder | D=8/12 | 1 | 12511268352 | $1.23 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 1 | 13311274792 | $1.73 | Shop at ECS Tuning | |||||
| 15 | Cable clamp | D=4,5MM | 1 | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 16 | Cable clamp | 1 | 61131360072 | ENDED | Shop at ECS Tuning | |||||
| 17 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 17 | Cable clamp | 1 | 61131351136 | ENDED | Shop at ECS Tuning | |||||
| 17 | Cable clamp | D=7MM | 1 | 61131353804 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 18 | Cable clamp | D=10MM | 1 | 61131354601 | $0.42 | Shop at ECS Tuning | ||||
| 19 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 19 | Cable clamp | D=9/B=4 | 1 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 20 | Cable holder | 1 | 12511271692 | $0.57 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cable tie | 122MM | 1 | 12321276231 | $0.62 | Shop at ECS Tuning | ||||
| 23 | Cable tie | 80MM | 1 | 12521266650 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 24 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 25 | Protection cap | 1 | 61131363318 | $1.77 | Shop at ECS Tuning | |||||
| 27 | Cable holder | 1 | 12421284411 | $1.78 | Shop at ECS Tuning | |||||
| 28 | Cable holder | 1 | 12521276153 | $0.88 | Shop at ECS Tuning | |||||
| 29 | Holder | 1 | 11781271748 | $1.18 | Shop at ECS Tuning | |||||
| 30 | Cable holder | D=9MM | X | 12511707788 | $0.78 | Shop at ECS Tuning | ||||
| 30 | Cable holder | D=13MM | X | 12511710536 | $0.57 | Shop at ECS Tuning | ||||
| 31 | Clamp | 1 | 12511287300 | $0.83 | Shop at ECS Tuning | |||||
| 32 | Cable holder | 1 | 12511287301 | $0.68 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
