Alternator parts 90a for BMW 5 Series E39 523i (2000)

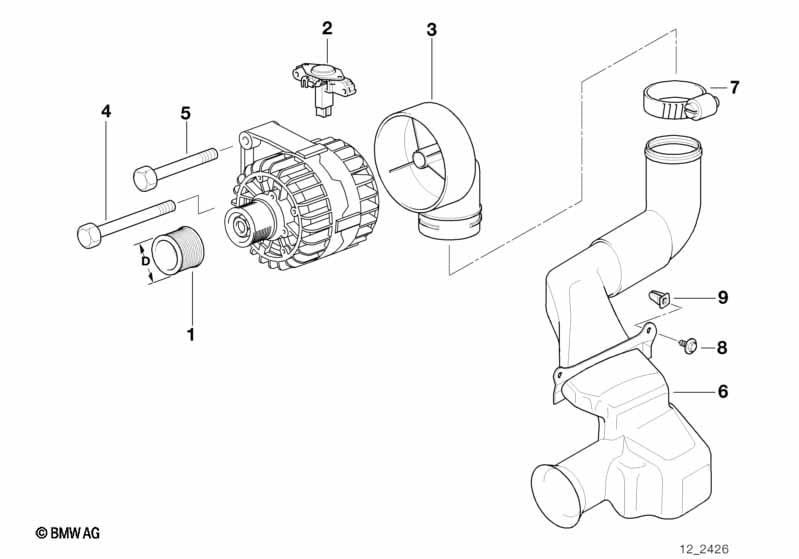

This Alternator parts 90a technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. B 120 411 629 BMW Nr. 12 31 1 432 977 / 983 |
|||||||||
| 01 | Pulley alternator | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | D=65MM | 1 | 12311740627 | $24.40 | +core | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 06 | Air channel | 1 | 12311744460 | $24.78 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
