ALTERNATOR PARTS 90A Valeo for BMW 3 Series E46 318Ci (2001)

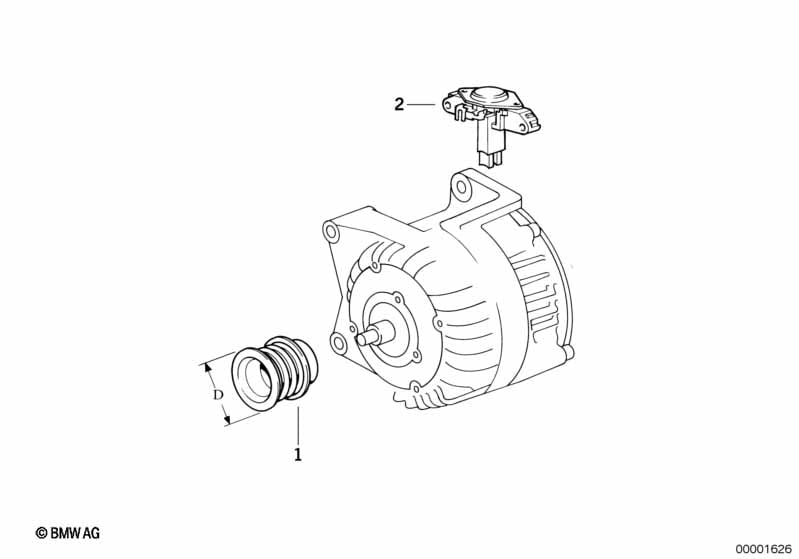

This ALTERNATOR PARTS 90A Valeo technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr. 2 541 961 BMW Nr. 12 31 1 435 429 / 430 |
|||||||||
| 01 | Pulley | D=53MM | 1 | 12311435940 | +core | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | VALEO | 1 | 12311432965 | $124.68 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 90A | X | 12317509101 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci ALTERNATOR PARTS 90A Valeo?
- This technical diagram illustrates the ALTERNATOR PARTS 90A Valeo within the Engine electrical system group for the 3 Series E46 318Ci produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Pulley (Part #12311435940).
- Which models use the hardware listed in this ALTERNATOR PARTS 90A Valeo?
- The hardware and components featured in the ALTERNATOR PARTS 90A Valeo are specific to the 3 Series E46 318Ci produced during 2001. These technical specifications ensure that parts like the Pulley (12311435940) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ALTERNATOR PARTS 90A Valeo assembly?
- Each item in the ALTERNATOR PARTS 90A Valeo corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the Pulley by locating its position on the schematic, which then links to the official BMW part number 12311435940 for the Engine electrical system section.
