Battery cable for BMW 3 Series E46 323i (1998)

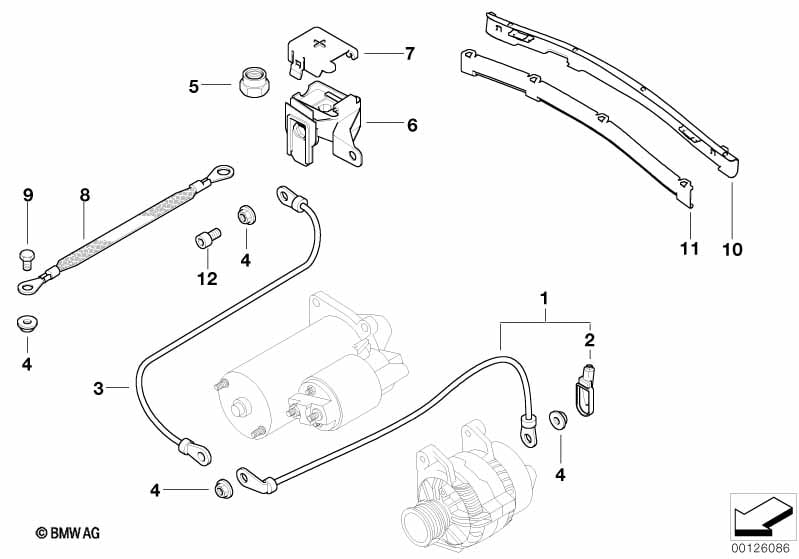

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable alternator-starter | 1 | 12421436547 | $19.50 | Shop at ECS Tuning | |||||
| 02 | Grommet | 1 | 12522245540 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable, start motor supp point B+ | 1 | 12421436548 | $39.17 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X16 | 5 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 05 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 06 | Base B+ | 1 | 03/1999 | 61138371010 | $5.43 | Shop at ECS Tuning | ||||
| 07 | Cover base B+ | 1 | 61138371011 | $1.28 | Shop at ECS Tuning | |||||
| 08 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Bottom part of cable guide | 1 | 12/2002 | 12521436339 | $7.78 | Shop at ECS Tuning | ||||
| 11 | Upper part of cable guide | 1 | 12/2002 | 12521436340 | $7.78 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
