Engine wiring harness for BMW 3 Series E46 318i (1998)

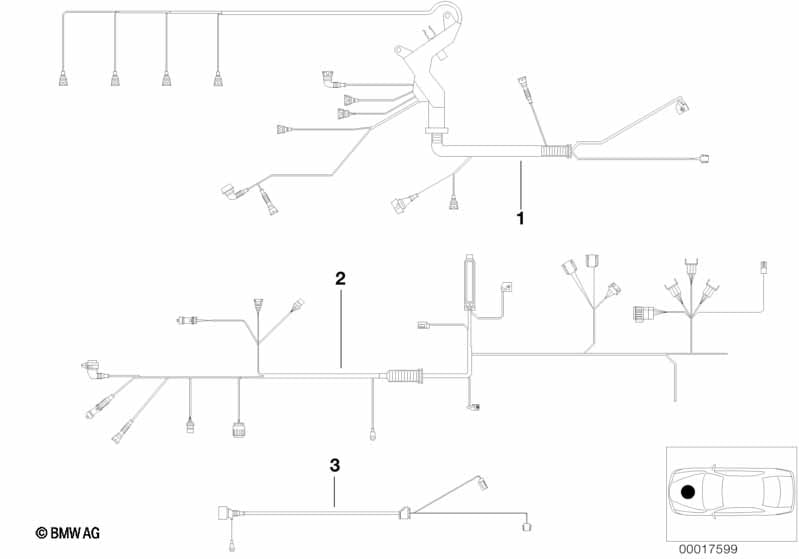

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harness, engine module | 1 | 06/2000 | 12511439874 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
=Yes |
|||||||||
| 01 | Engine wiring harness, engine module | 1 | 06/2000 | 12511439876 | $303.55 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 01 | Engine wiring harness, engine module | 1 | 06/2000 | 12511439873 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter and Automatic transmission |
S168A=Yes S199A=Yes =Yes |
|||||||||
| 01 | Engine wiring harness, engine module | 1 | 06/2000 | 12511439875 | ENDED | Shop at ECS Tuning | ||||
| 02 | wiring harness, engine trans. module | 1 | 06/1999 | 12511437960 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
=Yes |
|||||||||
| 02 | wiring harness, engine trans. module | 1 | 09/1999 | 12511439870 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 02 | wiring harness, engine trans. module | 1 | 06/2000 | 12511439867 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter and Automatic transmission |
S168A=Yes S199A=Yes =Yes |
|||||||||
| 02 | wiring harness, engine trans. module | 1 | 12511439869 | ENDED | Shop at ECS Tuning | |||||
| 03 | wiring harness, engine ignition module | 1 | 12511439877 | $38.56 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
