ALTERNATOR PARTS 90A Bosch for BMW 3 Series E46 323i (1998)

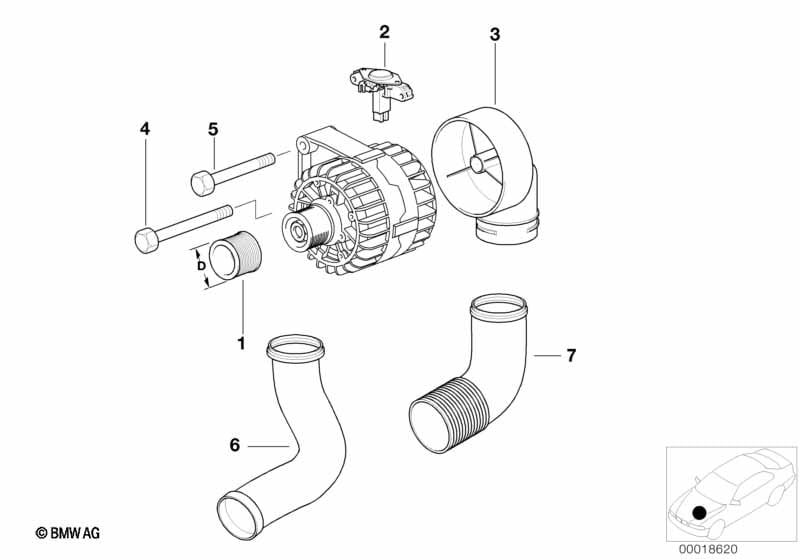

This ALTERNATOR PARTS 90A Bosch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. B 120 411 629 BMW Nr. 12 31 1 432 977 / 983 |
|||||||||
| 01 | Pulley alternator | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | BOSCH | 1 | 12311713491 | $157.93 | Shop at ECS Tuning | ||||
| 03 | Intake manifold | D=65MM | 1 | 12311740627 | $24.40 | +core | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 06 | Air channel lower | 1 | 12311706643 | $9.85 | Shop at ECS Tuning | |||||
| 07 | Air channel upper | 1 | 12311432465 | $7.82 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
