Engine wiring harness for BMW 5 Series E60 520d (2007)

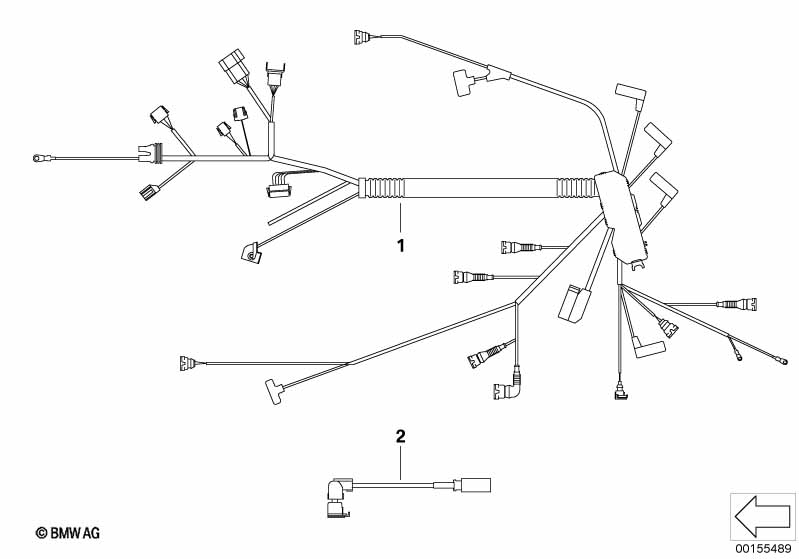

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Engine wiring harness DDE | 1 | 12517795363 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Engine wiring harness DDE | 1 | 12517795461 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520d Engine wiring harness?
- This technical diagram illustrates the Engine wiring harness within the Engine electrical system group for the 5 Series E60 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Engine wiring harness DDE (Part #12517795363).
- Which models use the hardware listed in this Engine wiring harness?
- The hardware and components featured in the Engine wiring harness are specific to the 5 Series E60 520d produced during 2007. These technical specifications ensure that parts like the Engine wiring harness DDE (12517795363) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine wiring harness assembly?
- Each item in the Engine wiring harness corresponds to the numbered list below the illustration. For the 5 Series E60 520d, you can identify the Engine wiring harness DDE by locating its position on the schematic, which then links to the official BMW part number 12517795363 for the Engine electrical system section.
