Ignition wire for BMW 1502-2002tii 1602 (1975)

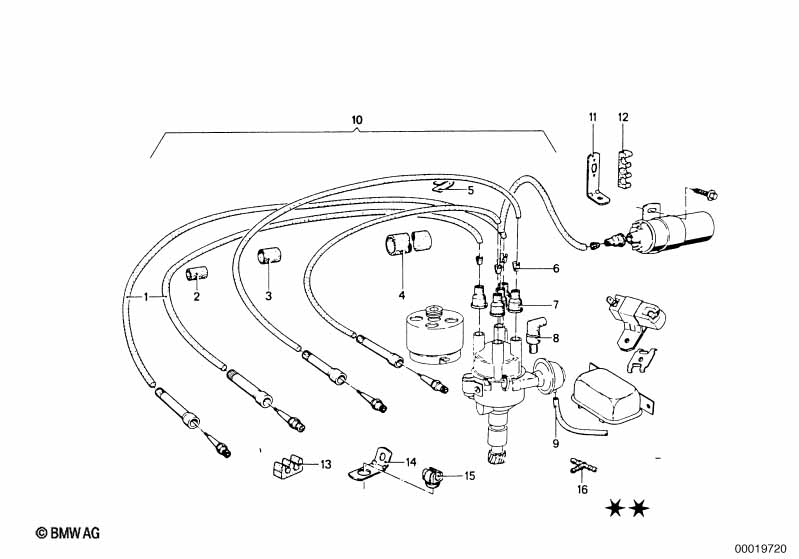

This Ignition wire technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wire | X | 12121705675 | $11.91 | +core | Shop at ECS Tuning | ||||
| 02 | Insulating hose | B 12 | X | 07119975332 | ENDED | Shop at ECS Tuning | ||||
| 03 | Insulating hose | 0000000000 | X | 07119975345 | ENDED | Shop at ECS Tuning | ||||
| 04 | Insulating hose | B18X1 | X | 07119975349 | $1.10 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1 | 11610643019 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cable sleeve | 6 | 12128536120 | $6.76 | ENDED | Shop at ECS Tuning | ||||
| 07 | Protection cap | 6 | 12118536129 | $6.07 | Shop at ECS Tuning | |||||
| 09 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
