Ignition coil/spark plug for BMW 1502-2002tii 1602 (1973)

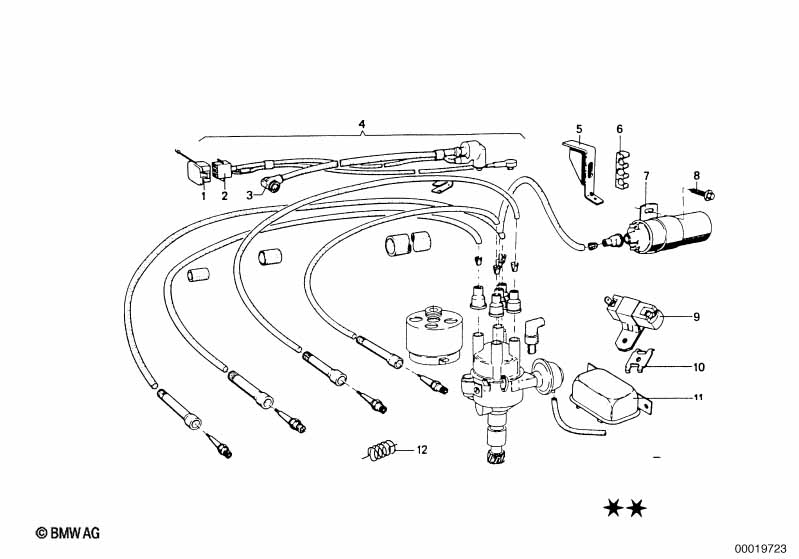

This Ignition coil/spark plug technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | 1 | 03/1966 | 07/1976 | 12121353222 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable socket round female | 1 | 03/1966 | 07/1976 | 61131350968 | ENDED | Shop at ECS Tuning | |||
| 04 | Ignition wire | X | 03/1966 | 07/1977 | 12121705675 | $11.91 | +core | Shop at ECS Tuning | ||
| 05 | Bracket | 1 | 03/1966 | 07/1977 | 12121353636 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | 1 | 03/1966 | 07/1977 | 12121353672 | $2.54 | Shop at ECS Tuning | |||
| 07 | Ignition coil | 12 VOLT | 1 | 09/1965 | 07/1977 | 12131359637 | $70.52 | Shop at ECS Tuning | ||
| 08 | Sheet metal screw | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Resistor | X | 12131353362 | $53.03 | ENDED | Shop at ECS Tuning | ||||
| 10 | Twist protection | X | 12131351124 | ENDED | Shop at ECS Tuning | |||||
| 11 | Starter motor relay | 1 | 09/1965 | 07/1976 | 61319059177 | $26.11 | Shop at ECS Tuning |
