Alternator, individual parts for BMW 1502-2002tii 2002 (1974)

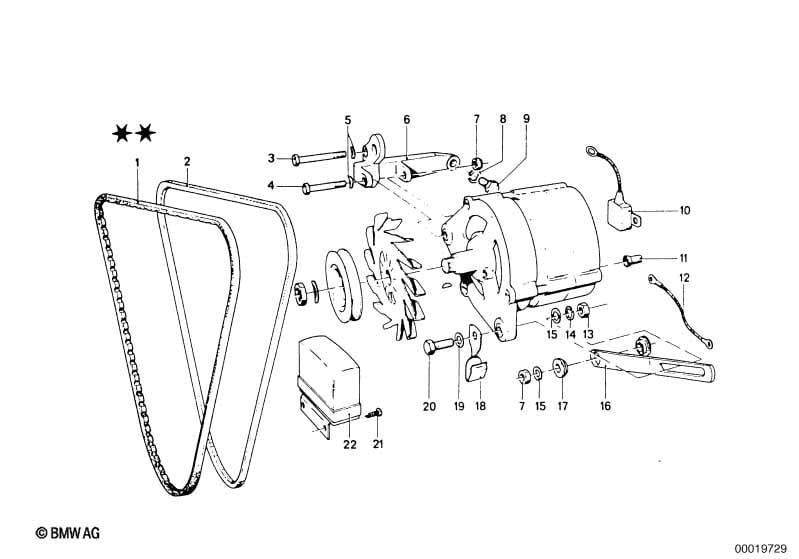

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fan belt | 1 | 02/1962 | 07/1977 | 12311268676 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Fan belt | 12,5X835 | 1 | 01/1968 | 07/1976 | 64551716959 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M8X75-8.8-ZNS3 | 1 | 02/1962 | 07/1977 | 07119906028 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M8X80 | 1 | 02/1962 | 07/1977 | 07119912558 | $2.89 | Shop at ECS Tuning | ||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 02/1962 | 07/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 06 | Supporting bracket | 1 | 02/1962 | 07/1977 | 12318602032 | $42.58 | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M8-8-ZNS3 | 2 | 02/1962 | 07/1977 | 07129904002 | $0.18 | Shop at ECS Tuning | ||
| 08 | Set spring washer 20 | B10 | 1 | 03/1966 | 07/1977 | 07509064021 | ENDED | Shop at ECS Tuning | ||
| 11 | Protection cap | 1 | 12311350280 | ENDED | Shop at ECS Tuning | |||||
| 12 | Ground cable | 1 | 07/1974 | 07/1976 | 61121359375 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex nut | M8-8-ZNS3 | 1 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 13 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Bush | 2 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
| 18 | Clamp | 1 | 12318602040 | ENDED | Shop at ECS Tuning | |||||
| 19 | Washer | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 21 | Fillister head self-tapping screw | ST5,5X13 | 2 | 07119907770 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 22 | Voltage regulator | 12 VOLT | 1 | 09/1965 | 07/1977 | 12321350052 | $128.23 | Shop at ECS Tuning | ||
