Alternator, individual parts for BMW 1502-2002tii 2002 (1974)

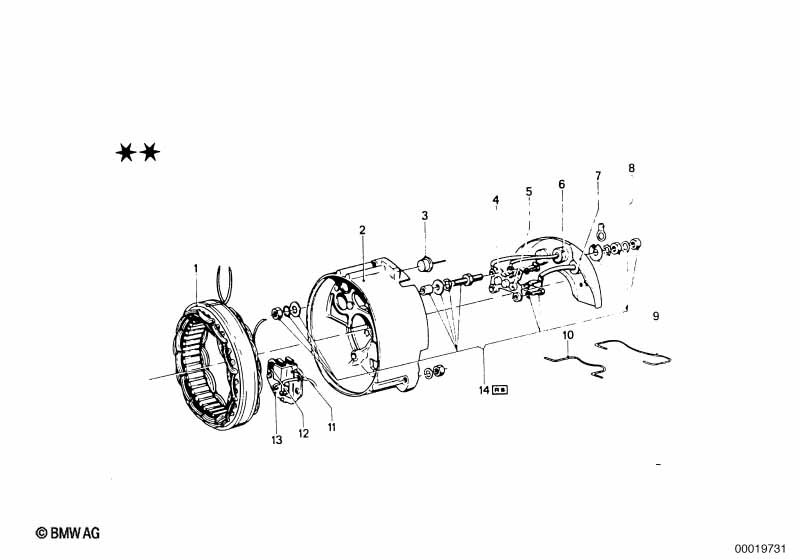

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stator assy | 14 VOLT GENER. | 1 | 09/1965 | 07/1977 | 12311350333 | ENDED | Shop at ECS Tuning | ||
| 02 | Housing assy rear | 14 VOLT GENER. | 1 | 09/1965 | 07/1977 | 12311350339 | ENDED | Shop at ECS Tuning | ||
| 03 | Diode | NEGATIV | 3 | 09/1965 | 07/1977 | 12311350337 | ENDED | Shop at ECS Tuning | ||
| 04 | Diode assy | 1 | 09/1965 | 07/1977 | 12311354589 | $50.50 | ENDED | Shop at ECS Tuning | ||
| 05 | Diode | 3 | 09/1965 | 07/1977 | 12311354590 | $15.07 | ENDED | Shop at ECS Tuning | ||
| 06 | Diode | POSITIV | 3 | 09/1965 | 07/1977 | 12311350336 | $9.95 | ENDED | Shop at ECS Tuning | |
| 07 | Plate | 1 | 09/1965 | 07/1977 | 12311350345 | $80.63 | ENDED | Shop at ECS Tuning | ||
| 09 | Bow | 1 | 09/1965 | 07/1977 | 12311354764 | ENDED | Shop at ECS Tuning | |||
| 11 | Carbon brush set | 1 | 09/1965 | 07/1977 | 12318602191 | $14.57 | Shop at ECS Tuning | |||
| 12 | Spring | 2 | 09/1965 | 07/1977 | 12318602149 | ENDED | Shop at ECS Tuning | |||
| 13 | Brush holder plate | 1 | 09/1965 | 07/1977 | 12311354584 | $41.39 | Shop at ECS Tuning | |||
| 14 | Repair kit alternator | 1 | 09/1965 | 07/1977 | 12311350341 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
