Starter single parts for BMW 1500-2000CS 1500 (1964)

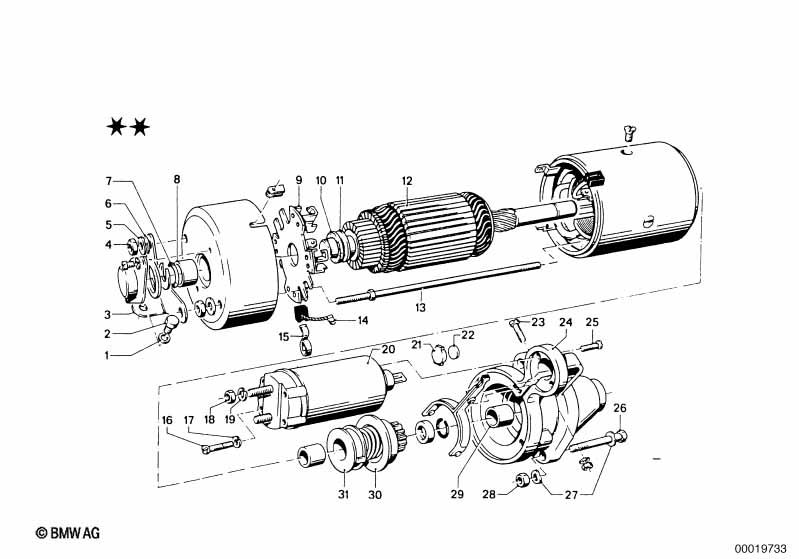

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M10X16 | 1 | 07119914121 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Support plate | 1 | 12418720035 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Bushing | 1 | 12411722916 | $3.85 | Shop at ECS Tuning | |||||
| 09 | Brush holder plate | 1 | 12411274607 | $19.96 | Shop at ECS Tuning | |||||
| 12 | Armature | 6 VOLT | 1 | 12418620120 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | 2 | 12418620152 | ENDED | Shop at ECS Tuning | |||||
| 15 | Shim | 3,700MM | 4 | 24231620142 | ENDED | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | M5X20 | 2 | 07119919433 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 19 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Solenoid switch | 1 | 12418620157 | ENDED | Shop at ECS Tuning | |||||
| 23 | Fillister-head screw | 1 | 12418620114 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 24 | Housing assy front | 1 | 12418620108 | $99.88 | ENDED | Shop at ECS Tuning | ||||
| 25 | Countersunk head screw | 2 | 12418620158 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 26 | Hex bolt | M10X75 | 2 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 27 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 28 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 29 | Bushing | 1 | 12411722917 | $3.74 | Shop at ECS Tuning | |||||
| 30 | Starter pinion | 1 | 12411350796 | $66.12 | Shop at ECS Tuning | |||||
| 31 | Guide ring | 1 | 12418620159 | $5.19 | ENDED | Shop at ECS Tuning |
