Starter single parts for BMW 1502-2002tii 1502 (1977)

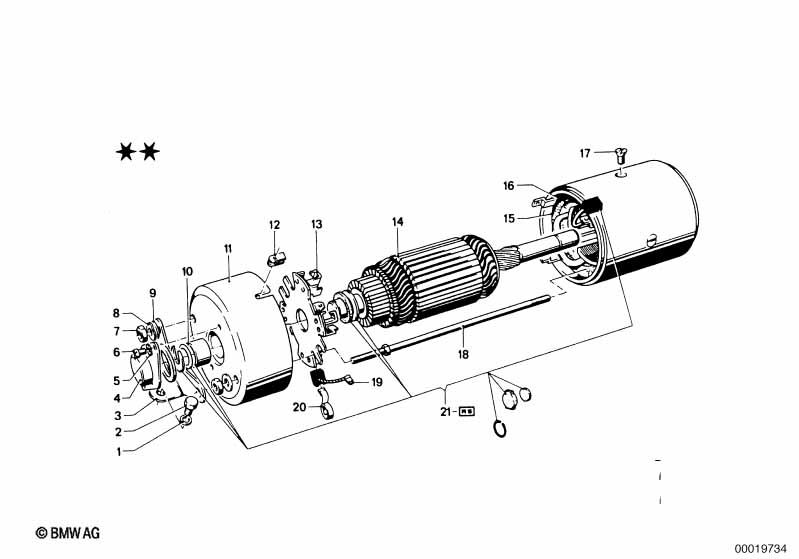

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 12 Volt / 0,8 Kw | |||||||||
| 01 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M10X16 | 1 | 07119914121 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Support plate | 1 | 12411350161 | ENDED | Shop at ECS Tuning | |||||
| 04 | Covering cap | 1 | 12411289491 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 08 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Bushing | 1 | 12411722916 | $3.85 | Shop at ECS Tuning | |||||
| 11 | Collector guiding | 1 | 12411350237 | ENDED | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 1 | 12418620102 | ENDED | Shop at ECS Tuning | |||||
| 13 | Brush holder plate | 1 | 12411274607 | $19.96 | Shop at ECS Tuning | |||||
| 14 | Armature | 1 | 12411350229 | $291.28 | ENDED | Shop at ECS Tuning | ||||
| 15 | Insulating | 1 | 12418620104 | ENDED | Shop at ECS Tuning | |||||
| 16 | Exciter winding | 1 | 12411350221 | $71.42 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fillister-head screw | 2 | 12411350248 | ENDED | Shop at ECS Tuning | |||||
| 19 | Carbon brush set | 1 | 12411350239 | $16.29 | ENDED | Shop at ECS Tuning | ||||
| 20 | Compression spring | 4 | 12418620143 | $1.04 | ENDED | Shop at ECS Tuning | ||||
| 21 | Repair kit for starter | 1 | 12411352289 | $10.83 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1502 Starter single parts?
- This technical diagram illustrates the Starter single parts within the Engine electrical system group for the 1502-2002tii 1502 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904463).
- Which models use the hardware listed in this Starter single parts?
- The hardware and components featured in the Starter single parts are specific to the 1502-2002tii 1502 produced during 1977. These technical specifications ensure that parts like the Wave washer (07119904463) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter single parts assembly?
- Each item in the Starter single parts corresponds to the numbered list below the illustration. For the 1502-2002tii 1502, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904463 for the Engine electrical system section.
